BVA Duck Bill Spreader

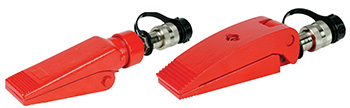

Duck_Bill-WP

Features:

  • Designed to Work in Confined Working Spaces
  • Ideal for Wedging, Prying, and Opening
  • High Strength Forged Steel
  • Spring Return for Easy Operation



SKU Size (Tons) Cylinder Effective Area (in²) Oil Capacity (in³) Weight (lbs)
SR05 0.5 1.22 0.58 4.8
SR10 1 0.86 0.86 5.1

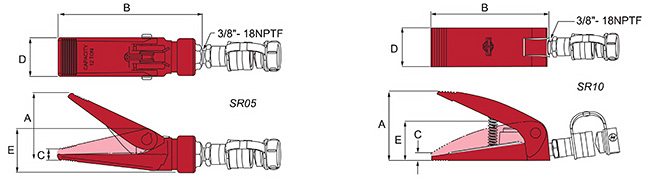

 Duck_Bill_Dimensions



SKU Size (Tons) A (in) B (in) C (in) D (in) E (in)
SR05 0.5 3.54 7.57 0.51 2.05 2.36
SR10 1 3.90 6.57 0.47 2.17 2.20

Safety Sizing Warning
