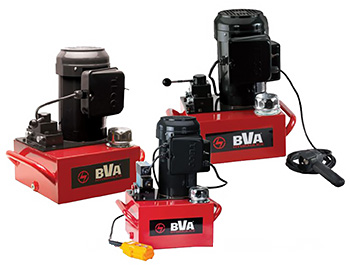

BVA PE30, PE40, PE50 Series Electric Pumps

Single Phase Group - WP



Features:

  • Meets OSHA Regulation for sound (8dBA)
  • 2 Stage Pumps Provide Fast Run up Before the High Pressure Stage
  • Suction Strainers Screen Out Contamination to Prevent Pump Damage
  • All Units are Wired as 120 VAC 60 Hz; Optional Wiring Includes 50 Hz Motors and 240 VAC 60 Hz
  • 100% Duty Cycle, NEMA 5 Enclosure TEFC Motors
  • All Hand Pendants are Wired 24 VAC for Safety
  • Starts Under Full Load

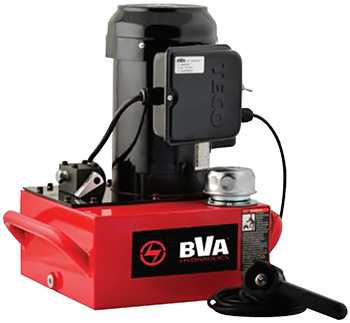

DMV+MP-WP



Dump Manual Valve w/10 ft. Motor Pendant

Usable Oil Capacity 1 Gal Usable Oil Capacity 2 Gal Usable Oil Capacity 3 Gal Usable Oil Capacity 5 Gal Usable Oil Capacity 10 Gal
PE30DMP01A PE30DMP02A PE30DMP03A
PE40DMP02A PE40DMP03A PE40DMP05A PE40DMP10A



2W/2P

DMP

Advance/Return

Spring-Return



 Dump Manual Valve w/10 ft. Motor Pendant

Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Motor Size
293 350 18 10,000 0.5 Hp
311 700 37 10,000 1.0 Hp
476 700 61 10,000 1.5 Hp



DS+P-WP

Dump Solenoid Valve w/10 ft. Pendant

Usable Oil Capacity 1 Gal Usable Oil Capacity 2 Gal Usable Oil Capacity 3 Gal Usable Oil Capacity 5 Gal Usable Oil Capacity      10 Gal Usable Oil Capacity 15 Gal Usable Oil Capacity 25 Gal
PE30H2S01A PE30H2S02A PE30H2S03A
PE40H2S02A PE40H2S03A PE40H2S05A PE40H2S10A
PE50H2S03A PE50H2S05A PE50H2S10A PE50H2S15A PE50H2S25A
PE30DSP01A PE30DSP02A PE30DSP03A
PE40DSP02A PE40DSP03A PE40DSP05A PE40DSP10A
PE50DSP03A PE50DSP05A PE50DSP10A PE50DSP15A PE50DSP25A



2W/2P

H2S

Advance/Return (auto♦)



Spring-Return

Dump Solenoid Valve w/10 ft. Pendant

Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Motor Size
293 350 18 10,000 0.5 Hp
311 700 37 10,000 1.0 Hp
476 700 61 10,000 1.5 Hp



3W/2P

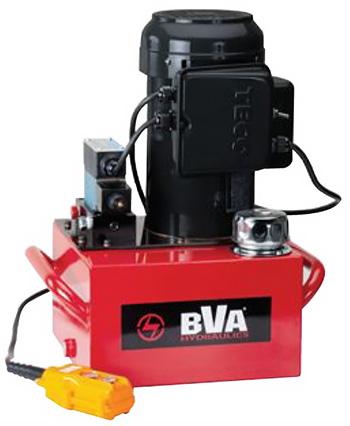

DSP

Advance/

Return♦♦

Spring-Return

Dump Solenoid Valve w/10 Ft. Pendant

Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Motor Size
293 350 18 10,000 0.5 Hp
311 700 37 10,000 1.0 Hp
476 700 61 10,000 1.5 Hp

♦ Advance Position Holds Pressure with Motor Running or Off.  Return Retracts Cylinder With Motor Off.

♦♦Advance Position Holds Pressure with Motor Running and Cylinder Returns When Button is Released.

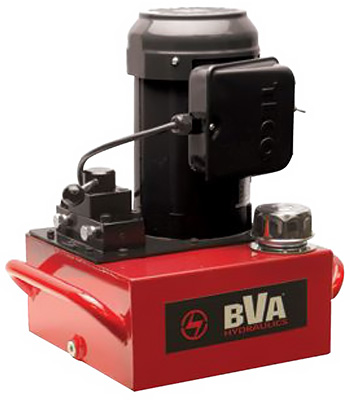

MV-WP

Manual Valve



Usable Oil Capacity 1 Gal Usable Oil Capacity 2 Gal Usable Oil Capacity 3 Gal Usable Oil Capacity 5 Gal Usable Oil Capacity 10 Gal Usable Oil Capacity 15 Gal Usable Oil Capacity 25 Gal
PE30M3N01A PE30M3N02A PE30M3N03A
PE40M3N02A PE40M3N03A PE40M3N05A PE40M3N10A PE40M3N15A PE40M3N25A
PE50M3N03A PE50M3N05A PE50M3N10A PE50M3N15A PE50M3N25A
PE30M4N01A PE30M4N02A PE30M4N03A
PE40M4N02A PE40M4N03A PE40M4N05A PE40M4N10A PE40M4N15A PE40M4N25A
PE50M4N03A PE50M4N05A PE50M4N10A PE50M4N15A PE50M4N25A



3W/3P

M3N

Advance/Hold Return

Spring-Return

Manual Valve

Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Motor Size
293 350 18 10,000 0.5 Hp
311 700 37 10,000 1.0 Hp
476 700 61 10,000 1.5 Hp



4W/3P

M4N

Advance/Hold /Return

Double-Acting



Manual Valve

Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Motor Size
293 350 18 10,000 0.5 Hp
311 700 37 10,000 1.0 Hp
476 700 61 10,000 1.5 Hp

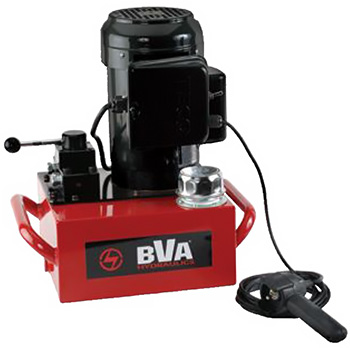

MV+MP-WP



Manual Valve w/10 ft. Pendant

Usable Oil Capacity 1 Gal Usable Oil Capacity 2 Gal Usable Oil Capacity 3 Gal Usable Oil Capacity 5 Gal Usable Oil Capacity 10 Gal Usable Oil Capacity 15 Gal Usable Oil Capacity 25 Gal
PE30W3N01A PE30W3N02A PE30W3N03A
PE40W3N02A PE40W3N03A PE40W3N05A PE40W3N10A PE40W3N15A PE40W3N25A
PE50W3N03A PE50W3N05A PE50W3N10A PE50W3N15A PE50W3N25A
PE30W4N01A PE30W4N02A PE30W4N03A
PE40W4N02A PE40W4N03A PE40W4N05A PE40W4N10A PE40W4N15A PE40W4N25A
PE50W4N03A PE50W4N05A PE50W4N10A PE50W4N15A PE50W4N25A



3W/3P

W3N

Advance/Hold Return

Spring-Return

Manual Valve w/10 Ft. Motor Pendant

Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Motor Size
293 350 18 10,000 0.5 Hp
311 700 37 10,000 1.0 Hp
476 700 61 10,000 1.5 Hp



4W/3P

W4N

Advance

/Hold Return

Double-Acting

Manual Valve w/10 Ft. Motor Pendant

Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Motor Size
293 350 18 10,000 0.5 Hp
311 700 37 10,000 1.0 Hp
476 700 61 10,000 1.5 Hp

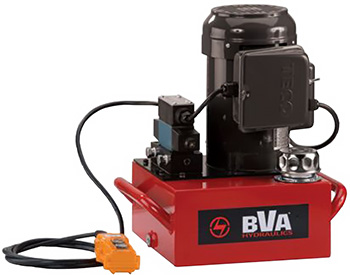

SV+P+LP-WP



Solenoid Valve w/10 ft. Pendant Locking Plate

Usable Oil Capacity 1 Gal Usable Oil Capacity 2 Gal Usable Oil Capacity 3 Gal Usable Oil Capacity 5 Gal Usable Oil Capacity 10 Gal Usable Oil Capacity 15 Gal Usable Oil Capacity 25 Gal
PE30S3L01A PE30S3L02A PE30S3L03A
PE40S3L02A PE40S3L03A PE40S3L05A PE40S3L10A PE40S3L15A PE40S3L25A
PE50S3L03A PE50S3L05A PE50S3L10A PE50S3L15A PE50S3L25A
PE30S4L01A PE30S4L02A PE30S4L03A
PE40S4L02A PE40S4L03A PE40S4L05A PE40S4L10A PE40S4L15A PE40S4L25A
PE50S4L03A PE50S4L05A PE50S4L10A PE50S4L15A PE50S4L25A



3W/3P

S3L

Advance

/Hold Return

Spring-Return

Solenoid Valve w/10 ft. Pendant & Locking Plate

Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Motor Size
293 350 18 10,000 0.5 Hp
311 700 37 10,000 1.0 Hp
476 700 61 10,000 1.5 Hp



4w/3P

S4L

Advance

/Hold/Return

Double-Acting



Solenoid Valve w/10 Ft. Pendant & Locking Plate

Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Motor Size
293 350 18 10,000 0.5 Hp
311 700 37 10,000 1.0 Hp
476 700 61 10,000 1.5 Hp

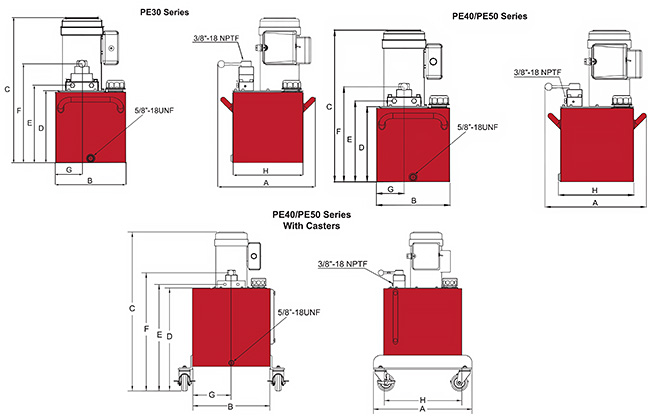

Single Phase Dimensions



Reservoir Size A (in) B (in) C (in) D (in) E (in) F (in) G (in ) H (in) Pump Weight by Series* (lbs) PE30 Pump Weight by Series* (lbs) PE40 Pump Weight by Series*(lbs) PE50
1 Gal 12.7 10.3 1.1 4.7 5.7 12.0 8.1 12.4 61.0
2 Gal 16.7 12.0 17.9 6.0 6.9 13.2 4.5 12.4 75.0 72.0
3 Gal 16.7 12.0 19.7 7.2 8.2 10.5 4.5 12.4 84.0 81.0 91.0
5 Gal 16.7 2.0 24.8 12.3 13.2 15.5 4.5 12.4 102.0 112.0
10 Gal 20.9 16.5 31.5 19.0 19.9 22.3 8.3 16.5 184.0 194.0
15 Gal 20.9 16.5 34.6 22.1 23.1 25.4 8.3 16.5 255.0 265.0
25 Gal 25.6 21.3 34.6 22.1 23.1 25.4 10.6 21.3 362.0 372.0

*Pump Weights Include Oil

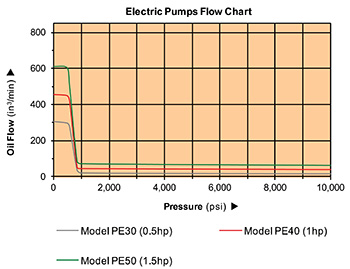

Single Phase Oil Flow Chart
