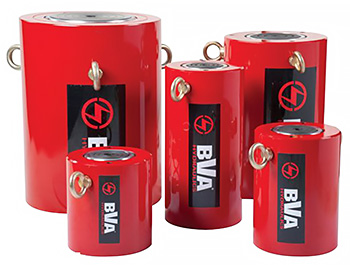

BVA HDG Series High Tonnage
Double Acting Cylinder
Features:
- Capacity: 100 -1,500 tons
- Stroke: 1.97 – 11.81 Inches
- Maximum Operating Pressure: 10,000 psi
- Minimum – Maximum Height: 7.17-43.80 Inches
- Cylinders are Burnish Rolled Creating a Smoother Finish Than Honing
- Industrial Hard Chrome Plated Rod Prevents Scratching and Corrosion
- Base Mounting Holes Standard on All Models
- Rod Wiper Seals Out Dirt and Contamination
- High Strength Steel Construction From Gun Drilled Solid Bar
- High Flow 3/8″ NPTF Couplers
- Maximum Working Pressure: 10,000 psi/ 700 Bar
- Custom Sizes are Available Upon Request
| SKU | Size (ton) | Stroke (in) | Push (ton) | Pull (ton) | Area Push (in²) | Area Pull (in²) | Oil Push (in³) | Oil Pull (in³) | Weight (lbs) |
| HDG10002 | 100 | 1.97 | 102.86 | 47.93 | 20.57 | 9.59 | 40.50 | 18.87 | 61.0 |
| HDG10004 | 100 | 3.94 | 102.86 | 47.93 | 20.57 | 9.59 | 81.00 | 37.74 | 74.1 |
| HDG10006 | 100 | 5.91 | 102.86 | 47.93 | 20.57 | 9.59 | 121.50 | 56.61 | 87.3 |
| HDG10008 | 100 | 7.87 | 102.86 | 47.93 | 20.57 | 9.59 | 161.99 | 75.49 | 100.4 |
| HDG10010 | 100 | 9.84 | 102.86 | 47.93 | 20.57 | 9.59 | 202.49 | 94.36 | 113.6 |
| HDG10012 | 100 | 11.81 | 102.86 | 47.93 | 20.57 | 9.59 | 242.99 | 113.23 | 126.7 |
| HDG15002 | 150 | 1.97 | 152.11 | 78.49 | 30.43 | 15.70 | 59.89 | 30.90 | 102.4 |
| HDG15004 | 150 | 3.94 | 152.11 | 78.49 | 30.43 | 15.70 | 119.78 | 61.79 | 122.0 |
| HDG15006 | 150 | 5.91 | 153.90 | 75.00 | 30.78 | 14.96 | 181.75 | 88.32 | 141.8 |
| HDG15008 | 150 | 7.87 | 152.11 | 78.49 | 30.43 | 15.70 | 239.57 | 123.59 | 161.6 |
| HDG15010 | 150 | 9.84 | 152.11 | 78.49 | 30.43 | 15.70 | 299.46 | 154.48 | 181.4 |
| HDG15012 | 150 | 11.81 | 152.11 | 78.49 | 30.43 | 15.70 | 359.35 | 185.38 | 201.7 |

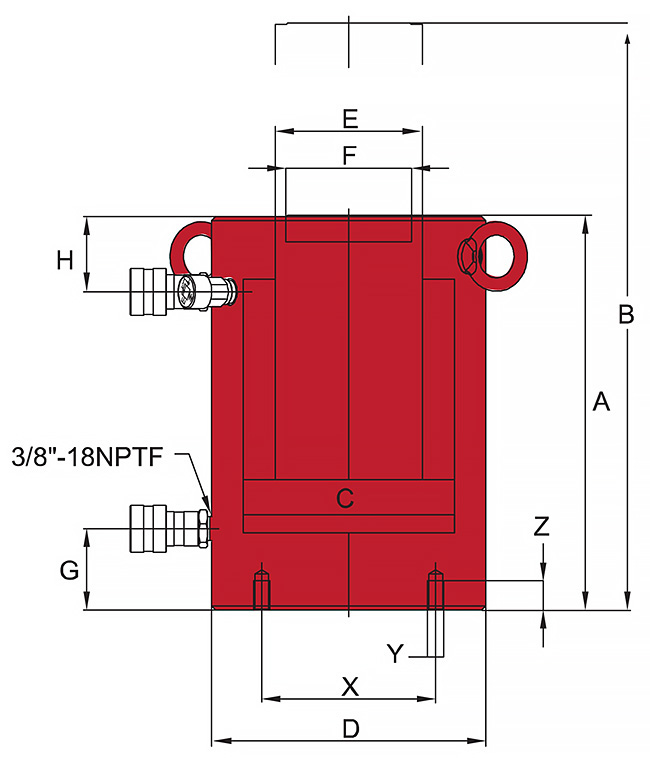

| SKU | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | X (in) | Y (mm) | Z (in) |
| HDG10002 | 7.17 | 9.13 | 5.12 | 6.50 | 3.74 | 2.95 | 2.13 | 1.89 | 3.74 | M12 | 0.87 |
| HDG10004 | 9.13 | 13.07 | 5.12 | 6.50 | 3.74 | 2.95 | 2.13 | 1.89 | 3.74 | M12 | 0.87 |
| HDG10006 | 11.10 | 17.01 | 5.12 | 6.50 | 3.74 | 2.95 | 2.13 | 1.89 | 3.74 | M12 | 0.87 |
| HDG10008 | 13.07 | 20.94 | 5.12 | 6.50 | 3.74 | 2.95 | 2.13 | 1.89 | 3.74 | M12 | 0.87 |
| HDG10010 | 15.04 | 24.88 | 5.12 | 6.50 | 3.74 | 2.95 | 2.13 | 1.89 | 3.74 | M12 | 0.87 |
| HDG10012 | 17.01 | 28.82 | 5.12 | 6.50 | 3.74 | 2.95 | 2.13 | 1.89 | 3.74 | M12 | 0.87 |
| HDG15002 | 7.72 | 9.69 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 2.22 | 5.12 | M12 | 0.87 |
| HDG15004 | 9.69 | 13.62 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 2.22 | 5.12 | M12 | 0.87 |
| HDG15006 | 11.65 | 17.56 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 2.22 | 5.12 | M12 | 0.87 |
| HDG15008 | 13.62 | 21.50 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 2.22 | 5.12 | M12 | 0.87 |
| HDG15010 | 15.59 | 25.43 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 2.22 | 5.12 | M12 | 0.87 |
| HDG15012 | 17.56 | 29.37 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 2.22 | 5.12 | M12 | 0.87 |
