BVA HP Series Pull Cylinder

HP-WP



Features:

  • High Strength Steel Construction
  • One Piece High Grade Alloy Bearing for Side Load Protection and Longer Life
  • Polyurethane Cup Seal Provides Optimum Performance
  • External Rod Threads and Internal ASE Threads
  • Used for Pulling and Tensioning
  • Maximum Working Pressure:  10,000 psi / 700 Bar
  • Spring Extend Return



SKU Size (ton) Stroke (ton) Cylinder Effective Area (in²) Oil Capacity (in³) Weight (lbs) Collapsed Height A (in) Extended Height B (in) Cylinder Bore Dia. C (in) OD D (in) Top to Inlet Port G (in)
HP0205 2.5 5.00 0.56 2.78 6.4 10.55 15.55 1.13 1.89 1.65
HP0505 5 5.55 1.14 6.34 9.3 11.93 17.48 1.69 2.25 1.50
HP1006 10 5.95 2.44 14.48 20.9 11.75 17.70 2.17 3.35 1.50

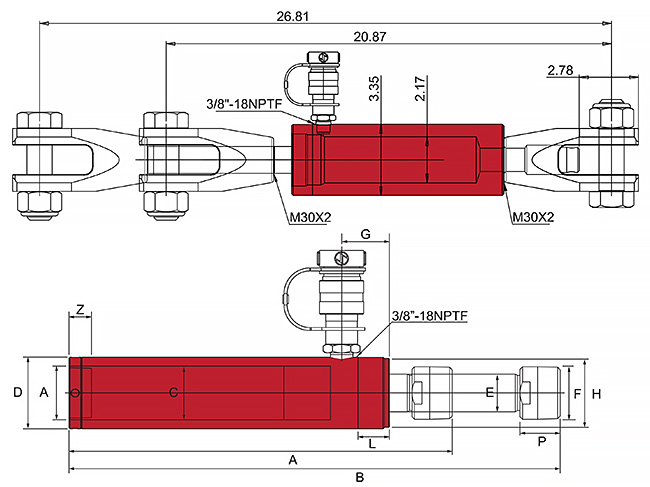

HP-Dimensions



SKU Adapter Thread F (in) Adapter Length P (in) Rod Dia. E (in) Rod Thread Length K (in) Thread Q (mm) Base Mounting Hole Thread Y Base Mounting Hole Depth Z (in)
HP0205 3/4-14 NPTF 1.13 0.75 0.76 M16 x 1.5 3/4″-14 NPTF 0.72
HP0505 1-1/4-11.5 NPTF 1.25 1.18 0.93 M28 x 1.5 1-1/4-11.5 NPTF 0.95
HP1006 1.26 1.02 M30 x 2 M30 x 2 0.98


Safety Sizing Warning
