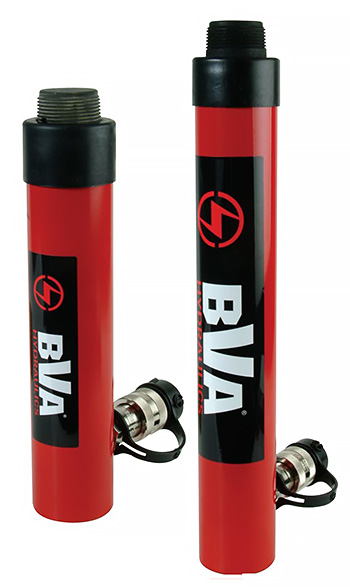

BVA HT Series Threaded Cylinder

With Spring Return

HT-WP



Features:

  • Ideal for Frame Pulling Machines
  • Threaded Rod and Base
  • Single Acting Cylinders with Spring return
  • Removable Threaded Rod Adapter Used to Attach Accessories to Rod End and Base
  • Maximum Working Pressure:  10,000 psi – 700 Bar



SKU Capacity (ton) Stroke (ton) Cylinder Effective Area (in²) Internal Pressure at Capacity (psi) Oil Capacity (in³) Weight (lbs)
HT1006 10 0.95 2.24 8,928 13.33 10.6
HT1010 10 9.96 2.24 8,928 22.30 14.1
HT2005 20 5.16 5.14 10,741 25.70 22.0

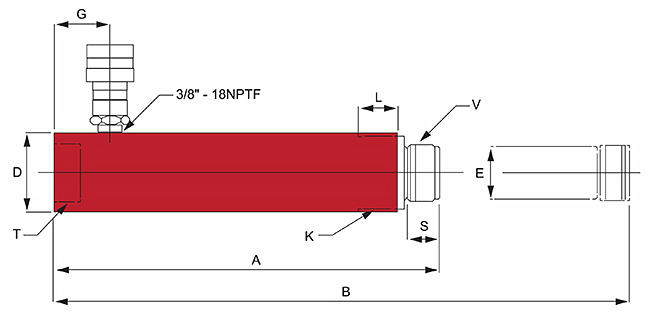

HT-Dimensions



SKU A (in) B (in) D (in) E (in) G (in) Collar K L (in) S (in) T (in) V (in)
HT1006 11.46 17.41 2.26 1.49 1.67 2.25″ – 14 UN 1.13 0.94 1.25″ – 11.5 NPSM 1.25″ – 11.5 NPSM
HT1010 15.47 25.43 2.26 1.49 1.67 2.25″ – 14 UN 1.13 0.94 1.25″ – 11.5 NPSM 1.25″ – 11.5 NPSM
HT2005 11.77 16.93 3.35 2.24 1.85 3.31″ – 12 UN 1.98 1.40 2″ – 11.5 NPTF 2″ – 11.5 NPSM
