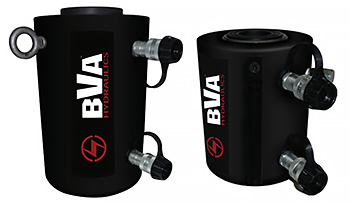

BVA HUDC Series Double Acting
Aluminum Hollow Hole Cylinder
Features:
- Capacity: 30 – 150 Ton
- Maximum Operating Pressure: 10,000 psi
- Lightweight Aluminum Alloy Construction
- 50 ton capacity Include Handles
- 100 and 150 Ton Capacity Include Eyelets
- Ideal for Pushing and Pulling Applications
- Dual Wipers Help Prevent Contamination
- CH38F – 3/8″ -18 NPTF High Flow Female Couplers
- Hard Chrome Rod Prevents Rust and Corrosion
- Hardened Steel Seat
- Constructed and Tested in Compliance with ASME B30.1
SKU | Capacity (ton) | Stroke (ton) | Max Push (ton) | Max Pull (ton) | Weight (lbs) | Collapsed Height (in) | Extended Height (in) | Cylinder Bore Dia (in) | OD (in) |
HUDC3006 | 30 | 6.00 | 30.00 | 10.12 | 30.0 | 11.50 | 17.50 | 1.50 | 5.50 |
HUDC3010 | 30 | 10.00 | 30.00 | 10.12 | 40.0 | 15.50 | 25.50 | 1.50 | 5.50 |
HUDC5006 | 50 | 6.00 | 50.00 | 17.18 | 50.0 | 11.50 | 17.50 | 2.13 | 7.50 |
HUDC5010 | 50 | 10.00 | 50.00 | 17.18 | 65.0 | 15.50 | 25.50 | 2.13 | 7.50 |
HUDC10006 | 100 | 6.00 | 100.00 | 37.55 | 125.0 | 14.50 | 20.50 | 3.50 | 11.00 |
HUDC10010 | 100 | 10.00 | 100.00 | 37.55 | 142.0 | 18.50 | 28.50 | 3.50 | 11.00 |
HUDC15006 | 150 | 6.00 | 150.00 | 55.00 | 158.0 | 14.50 | 20.50 | 3.50 | 12.00 |
HUDC15010 | 150 | 10.00 | 150.00 | 55.00 | 180.0 | 18.50 | 28.50 | 3.50 | 12.00 |
