BVA Hydraulic Couplers

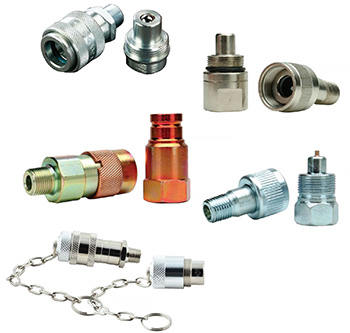

Couplers-350

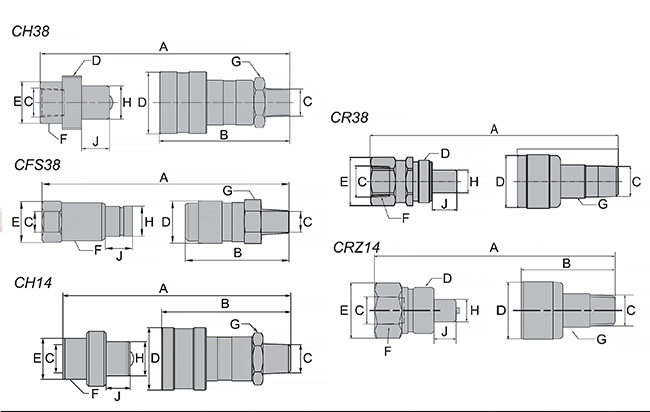

Couplers-D650



SKU Set SKU Male SKU Female Coupler Flow A ** (in) B (in) C (in) D (in) E (in) F (in) G (in) H (in) J (in)
CH38 CH38M CH38F High 3.35 2.84 3/8″ – 18 1.10 1.00 0.75 0.63 0.63
CFS38 CFS38M CFS38F Flush 4.36 2.85 3/8″ – 18 1.21 1.06 1.12 0.79 0.63 0.63
CR38 CR38M CR38F Regular 3.15 2.20 3/8″ – 18 1.04 0.73 0.50 0.53 0.53
CH14 CH14M CH14F High 2.83 2.35 1/4″ – 18 0.87 0.83 0.62 0.41
CRZ14 CRZ14M CRZ14F Regular 2.42 1.67 1/4″ – 18 0.95 0.83 0.58 0.39 0.35 0.35

**Value A is Total Length When Male and Female Couplers are Connected
