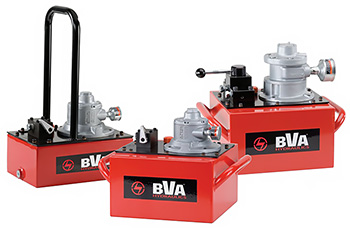

BVA PAR Series Rotary Air Pumps
Features:
- Pressure Rating 10,000 psi
| Used w/ Cylinder | SKU | Motor Size (hp) | Usable Oil Capacity (gal) | Pressure Rating 1st Stage (psi) | Pressure Rating 2nd Stage (psi) | Oil Output Flow Rate 1st stage (in³/min) | Oil Output Flow Rate 2nd stage (in³/min) | Valve Type | Valve Function |
| SINGLE | PARD1701 | 1.7 | 1 | 700 | 10,000 | 313 | 22 | Dump | A, R |
| ACTING | PARD1703 | 1.7 | 3 | 700 | 10,000 | 313 | 22 | Dump | A, R |
| PAR1703 | 1.7 | 3 | 700 | 10,000 | 417 | 22 | Manual PW3 | A, H, R | |
| PARD4001 | 4 | 1 | 700 | 10,000 | 465 | 70 | Dump | A, R | |
| PARD4003 | 4 | 3 | 700 | 10,000 | 465 | 70 | Dump | A, R | |
| PAR4003 | 4 | 3 | 700 | 10,000 | 512 | 70 | Manual PW3 | A, H, R | |
| DOUBLE ACTING | PARM1703 | 1.7 | 3 | 700 | 10,000 | 417 | 22 | Manual PW4 | A, H, R |
| PARM4003 | 4 | 3 | 700 | 10,000 | 512 | 70 | Manual PW4 | A, H, R |
VALVE FUNCTION EXPLAINED: A = Advance R= Return H=Hold

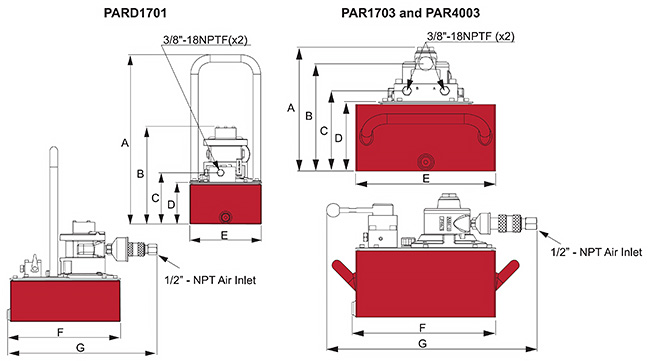

| SKU | Air Consumption (cfm) | Max Sound Level (dBA) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) |
| PARD1701 | 44 | 93 | 19.10 | 9.39 | 5.79 | 4.72 | 8.07 | 12.34 | 15.90 |
| PARD1703 | 44 | 93 | – | 11.95 | 8.35 | 7.28 | 12.01 | 12.34 | 17.96 |
| PAR1703 | 44 | 93 | 11.94 | 10.53 | 8.21 | 7.28 | 12.01 | 12.34 | 18.08 |
| PARD4001 | 95 | 100 | 19.10 | 11.00 | 5.79 | 4.72 | 8.07 | 12.34 | 16.34 |
| PARD4003 | 95 | 100 | – | 13.56 | 8.35 | 7.28 | 12.01 | 12.34 | 18.40 |
| PAR4003 | 95 | 100 | 13.55 | 10.53 | 8.21 | 7.28 | 12.01 | 12.34 | 18.52 |
| PARM1703 | 44 | 93 | 11.94 | 10.53 | 8.21 | 7.28 | 12.01 | 12.34 | 18.08 |
| PARM4003 | 95 | 100 | 13.55 | 10.53 | 8.21 | 7.28 | 12.10 | 12.34 | 18.52 |
