BVA PU Series Light-Weight Pumps

Universal Motor Pump

Universal-Pump-WP



Features:

  • Portable, Light Weight and Compact Design
  • Universal Motor, Starts Under Full Load and is Available in Either 120 VAC 50/60 HZ or 240 VAC 50/60 HZ
  • 10 Ft. VAC Pendant Control for Safety
  • Weighs Only 37 Lbs. With Oil
  • External Pressure Adjustment is Available
  • Designed for Intermittent Duty Operation
  • Gauge Port on Control Valve



Voltage 50/60 Hz 120 VAC SKU Voltage 50/60 Hz 240 VAC SKU Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi) Valve Function
PU20DMP01B PU20DMP01C 133 200 28 10,000 2W/2P Advance/Return
PU20M3N01B PU20M3N01C 133 200 28 10,000 3W/3P Advance/Hold Return
PU20M4N01B PU20M4N01C 133 200 28 10,000 4W/3P Advance/Hold/Return

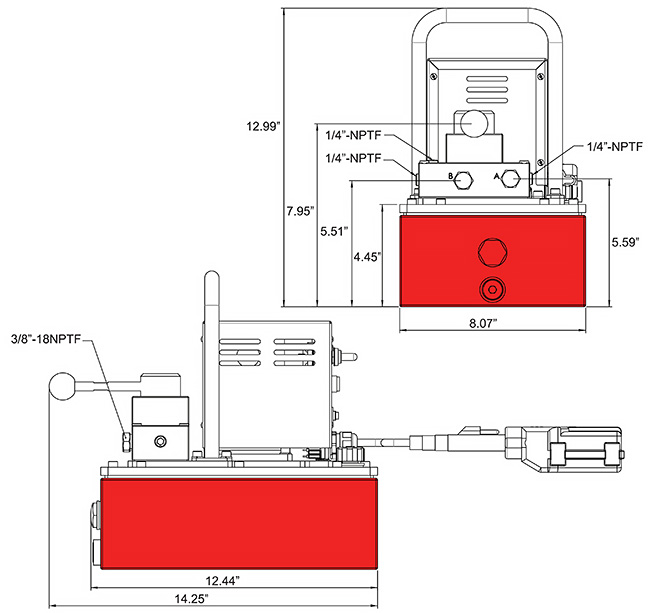

Universal-Dimensions-WP



Voltage 50/60 Hz 120 VAC SKU Voltage 50/60 Hz 240 VAC SKU Motor Size Weight (lbs) Length (in) Width (in) Height (in)
PU20DMP01B PU20DMP01C 1.0 Hp 37 12.44 8.07 11.81
PU20M3N01B PU20M3N01C 1.0 Hp 37 14.25 8.07 11.81
PU20M4N01B PU20M4N01C 1.0 Hp 37 14.25 8.07 11.81

Safety Sizing Warning
