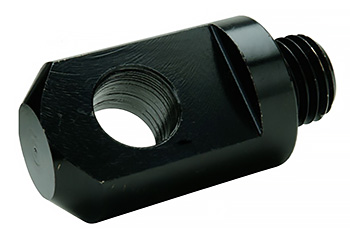

BVA Cylinder Rod Clevis Tang

CEP-ROD-CLEVIS-WP

Features:

  • Ideal for Installation of Cylinders into Production Applications
  • Designed for Ease of Carrying
  • Provides Better Control for Positioning Cylinders



CEP-Dimensions



SKU Cylinder Series A (in) B (in) C (in) D (in) F (in) G (in) H (in)
CEP05 H05* 3/4″-16 N 1.13 2.25 0.63 0.56 0.63
CEP15 H10 **, H15, HD10 1″-8 UN 1.69 3.31 0.88 1.00 1.00
CEP25 H25 1-1/2″-16 UNC 2.25 3.81 1.25 1.50 1.25

     *  Except H0500

     ** Except H1001
