BVA SD Series Grooved Cylinder Saddle

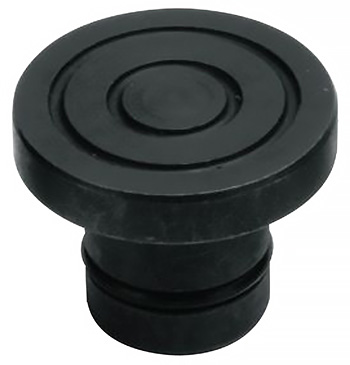

SD-Saddle-WP

Features:

  • All Saddles Have Grooved Surfaces Which Gives a Better Surface Traction During Operation

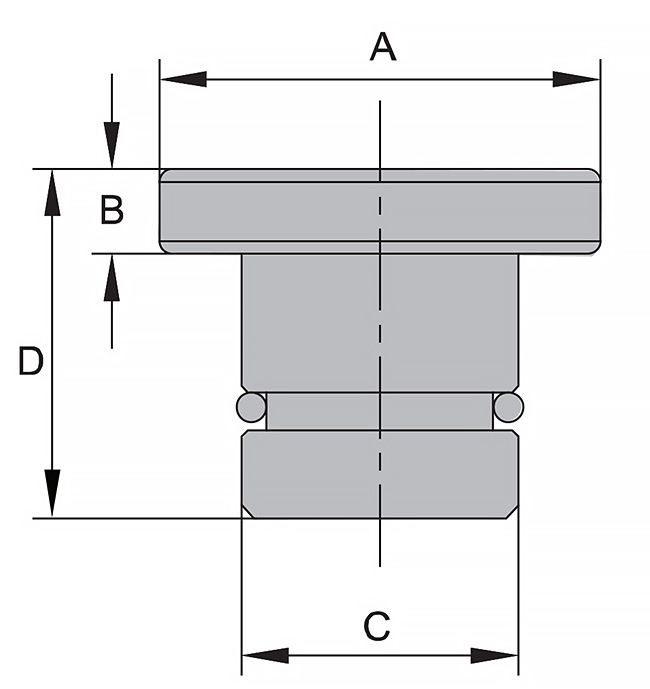

SD-Saddle-DIMENSIONS



SKU Capacity (ton) Use with Cylinder A (in) B (in) C (in) D (in)
SD05 5 H05  * 0.98 0.81 0.24
SD10 10 H10  ** 1.38 1.06 0.24
SD15 15 H15 1.50 1.18 0.24
SD25 25 H25 1.97 1.14 0.24

               *Except H0500

           ** Except H1001
