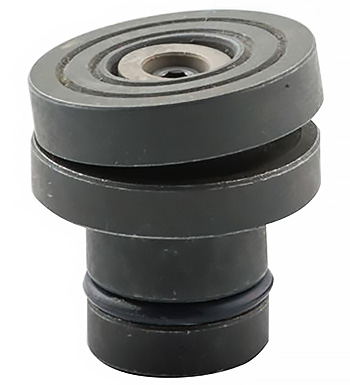

BVA SDT Series Tilted Cylinder Saddle

SDT-SADDLE-WP

Features:

  • Rotates 360°
  • Tilts up to 5°

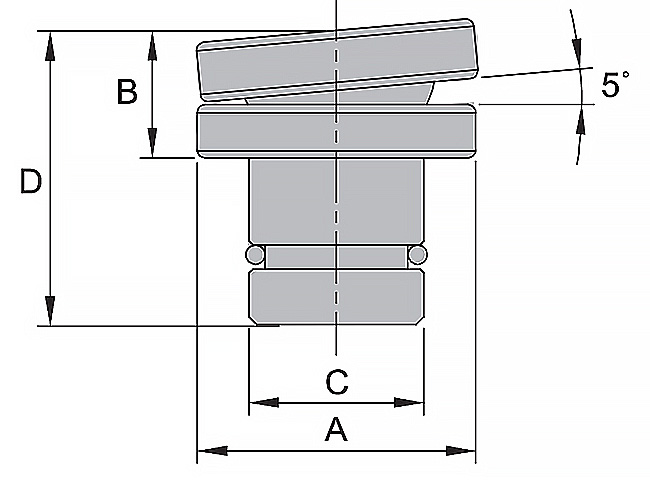

SDT-SADDLE-DIMENSIONS





SKU Capacity (ton) Use with Cylinder A (in) B (in) C (in) D (in)
SDT05 5 H05 0.98 1.22 0.67 1.20
SDT10 10 H10 1.38 1.50 0.86 1.50
SDT15 15 H15 1.50 1.57 0.86 1.58
SDT25 25 H25 1.97 1.60 1.14 1.59
SDT55 55-100 H55, HD55, H75, HD75, H100, HLN55, HLN100 2.80 1.29 0.50 1.30
SDT200 150-200 HLN150 and HLN200 5.12 5.12 1.02 0.58
