BVA SDTG Series Tilted Cylinder Saddle

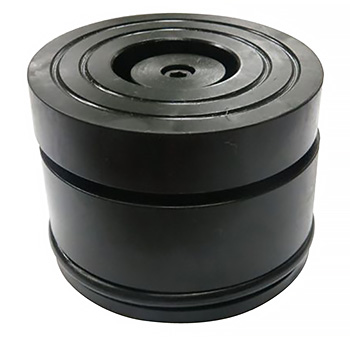

SDTG-Saddle-WP

Features:

  • Rotates 360°
  • Tilts up to 5°

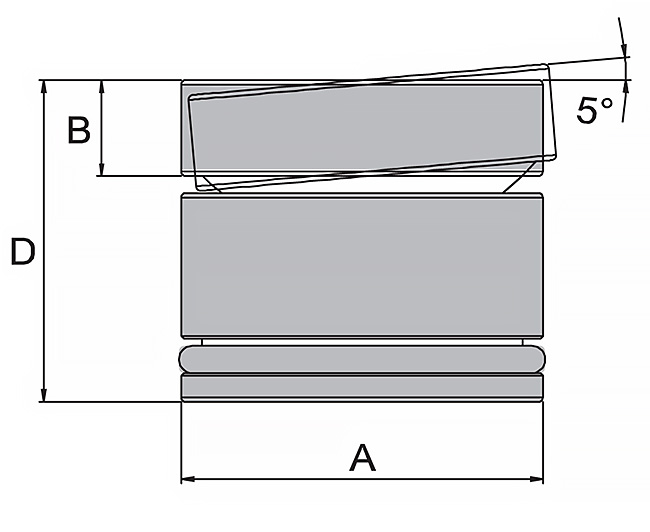

SDTG-Saddle-DIMENSIONS



SKU Capacity (ton) Use with Cylinder A (in) B (in) C (in) D (in)
SDTG100 100 HG100Vand HDG100 2.95 2.64 1.71 0.79
SDTG150 150 HG150 and HDG150 3.70 2.71 1.77 0.77
SDTG200 200 HG200 and HDG200 4.45 3.25 1.95 1.10
SDTG250 250 HLN150 and HLN200 5.12 1.77 1.02 0.58

 Safety Sizing Warning
