BVA Cylinder

H Series - WP

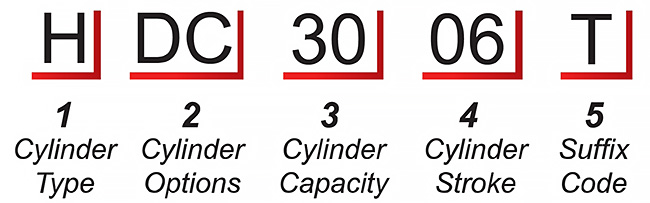

Part Number Defination





1-Cylinder Type
H– Hydraulic Cylinder

2- Cylinder Options 3- Cylinder Capacity 4-Cylinder Stroke 5- Suffix Code
C – S/A-Hollow Hole 02 – 2, 2.5 tons 00 – 0.63″ T – BVA Factory Designation
D – D/A General Purpose 04 – 4 tons 01 – 1″ US -US Made Cylinder
DC – D/A Hollow Hole 05 – 5 tons 02 – “2 XT – No Internal Threads, HC Series Only
DG – D/A High Tonnage 09 – 9 tons 04 – 4″ B – Flat Body Cylinder Kit
F – S/A Load Return High Tonnage 10 – 10 tons 05 – 5″
L – S/A Low Profile 12 – 12 tons 06 – 6″
LN – S/A Lock Nut 15 – 15 tons 08 – 8″
LNF – S/A Lock Nut Low Profile 16 – 16 tons 10 – 10″
P – S/A Pull 20 – 20 tons 12 – 12″
PD – Precision Double Acting 25 – 25 tons 13 – 13″
T – S/A Threaded 30 – 30 tons 14 – 14″
U – S/A Aluminum 50 – 50 tons 18 – 18″
UC – S/A Aluminum Hollow Hole 55 – 55 tons 20 – 20″
UDC – D/A Aluminum Hollow Hole 60 – 60 tons 24 – 24″
ULN – S/A Aluminum Lock Nut 75 – 75 tons 32 – 32″
  100 – 100 tons
  150 – 150 tons
  160 – 160 tons
  200 – 200 tons
  250 – 250 tons
  300 – 300 tons
  400 – 400 tons
  500 – 500 tons
  600 – 600 tons
  700 – 700 tons
  800 – 800 tons
  1000 – 1,000 tons
  1500 – 1,500 tons

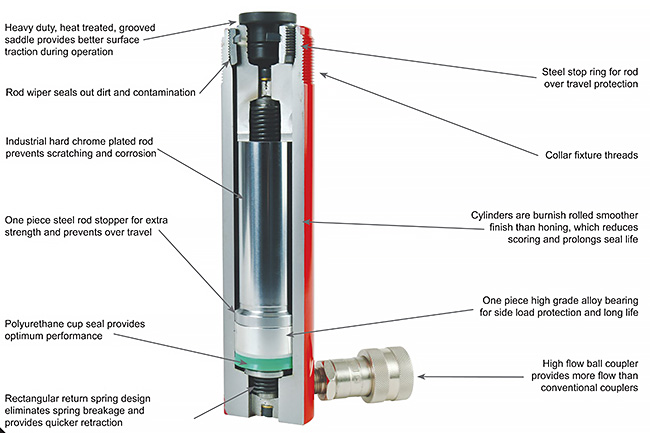

BVA Cylinders Features



Safety Sizing Warning
