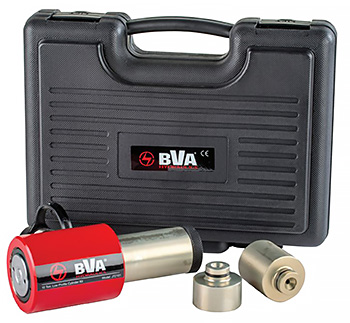

Low Profile Cylinder Combo Kit

HL-Kit-WP



Features:

  • Compact Design for Use in Confined Spaces
  • Ideal for Pushing Applications
  • Rod Wiper Helps Seal Out Dirt and Contamination
  • Return Spring Ensures a Quick Retraction and Extends the Life of the Spring
  • Industrial Hard Chrome Plated Rod Helps Prevent Scratching and Corrosion
  • Includes High Flow CH38F Coupler and Dust Cap
  • Convenient Storage Case
  • Kit Includes 1″, 2″ and 3″ Adapters and 1.5″ diameter Saddle



SKU Size (ton) Stroke (in) Cylinder Effective Area (in²) Collapsed Height (in) Extended Height w/o Adapter (in) Max Pressure (psi) Cylinder Housing Dia. (in) Rod Dia. (in) Weight (lbs)
J72101 10.0 1.50 2.35 3.48 4.98 8,511 2.75 1.50 10.0



Safety Sizing Warning
