BVA Hydraulics Flat Body

Spring Return Cylinder

HF-WP



Features:

  • Extremely Low Collapsed Height For Applications with Minimal Clearance at the Lift Point
  • Maximum Working Pressure 10,000 psi/70 Bar
  • HF0503 and HF0503B Come with a 3/8″ Regular Flow Coupler



SKU Size (ton) Stroke (in) Cylinder Effective Area (in²) Max Internal psi Oil Capacity (in³) Weight (lbs)
HF0503 * 5 0.24 1.10 9,090 026 1.3
HF1005 10 0.43 2.36 8,470 1.01 3.3
HF2005 20 0.43 4.38 9,130 1.88 5.9
HF3005 30 0.51 6.49 9,240 3.31 9.7
HF5006 50 0.63 9.86 10,140 6.21 14.9
HF7506 75 0.63 16.10 9,320 10.14 25.4
HF10006 100 0.63 19.64 10,180 12.37 31.5
HF15006 150 0.63 30.67 9,780 19.32 53.4

* HF0503 Comes Equipped with the CR38F Coupler Instead of CH38F

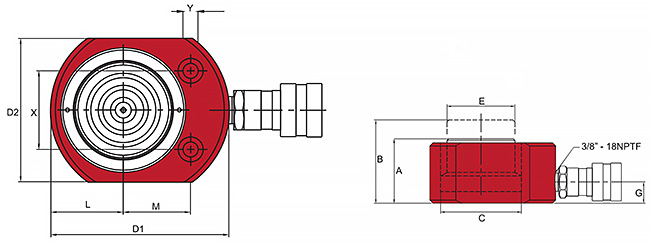

HF-Dimesnions



SKU A (in) B (in) C (in) D1xD2= D (in) E (in) G (in) L (in) M (in) X (in) Y (in) Counter Bore Dia. (in) Counter Bore Depth (in)
HF0503* 1.26 1.5 1.18 2.4×1.6 0.98 0.69 0.80 0.87 1.12 0.20 0.31 0.17
HF1005 1.69 2.12 1.73 3.3×2.2 1.50 0.77 1.12 1.32 1.44 0.28 0.42 0.31
HF2005 2.01 2.44 2.36 4.0×3.0 2.00 0.75 1.54 1.56 1.94 0.40 0.59 0.39
HF3005 2.31 2.82 2.87 4.6×38 2.50 0.79 1.88 1.75 2.06 0.40 0.63 0.44
HF5006 2.64 3.27 3.54 4.5×4.5 2.76 0.9 2.25 2.13 2.62 0.43 0.75 0.50
HF7506 3.13 3.76 4.53 6.5×5.5 3.54 0.77 2.75 2.63 3.00 0.51 0.83 0.56
HF10006 3.37 4.00 5.00 7.0×6.0 3.54 0.79 3.00 2.94 3.00 0.51 0.83 0.56
HF15006 3.94 4.57 6.25 8.5×7.5 4.65 0.94 3.75 3.25 4.62 0.51 0.83 0.56

* HF0503 Comes Equipped with the CR38F Coupler Instead of CH38F

Safety Sizing Warning
