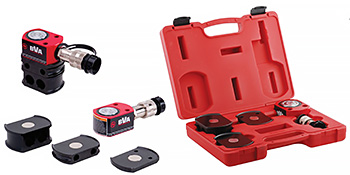

BVA HF Series Flat Body Cylinder Kit
Features:
- Various Height Stackable Magnetic Adapters Eliminate Dangerous Cribbing
- Convenient Carrying Case
- Magnetic Adapters are Stackable
- U. S. Patent No. 7,238,762 B2

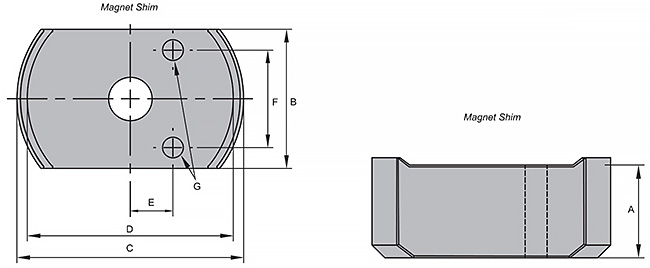

| Kit SKU | Cylinder SKU | Cylinder Capacity (ton) | Stroke (in) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) |
| HF0503B | HF0503 | 5 | 0.24 | 0.17 | 1.61 | 2.56 | 2.32 | 0.48 | 1.10 | 0.24 |
| .042 | 1.61 | 2.56 | 2.32 | 0.48 | 1.10 | 0.24 | ||||
| 0.92 | 1.61 | 2.56 | 2.32 | 0.48 | 1.10 | 0.24 | ||||
| 1.17 | 1.61 | 2.56 | 2.32 | 0.48 | 1.10 | 0.24 | ||||
| HF1005B | HF1005 | 10 | 0.43 | 0.39 | 2.20 | 3.54 | 3.23 | 0.81 | 1.46 | 0.28 |
| 0.79 | 2.20 | 3.54 | 3.23 | – | – | – | ||||
| 1.57 | 2.20 | 3.54 | 3.23 | – | – | – | ||||
| HF2005B | HF2005 | 20 | 0.43 | 0.39 | 2.99 | 4.25 | 3.94 | 1.08 | 1.93 | 0.39 |
| 0.79 | 2.99 | 4.25 | 3.94 | – | – | – | ||||
| 1.57 | 2.99 | 4.25 | 3.94 | – | – | – | ||||
| HF3005B | HF3005 | 30 | 0.51 | 0.39 | 3.75 | 4.76 | 4.45 | 1.32 | 2.06 | 0.39 |
| 0.79 | 3.75 | 4.76 | 4.45 | – | – | – | ||||
| 1.57 | 3.75 | 4.76 | 4.45 | – | – | – | ||||
| HF5006B | HF5006 | 50 | 0.63 | 0.39 | 4.49 | 5.89 | 5.57 | 1.61 | 2.62 | 0.43 |
| 0.79 | 4.49 | 5.89 | 5.57 | – | – | – | ||||
| 1.57 | 4.49 | 5.89 | 5.57 | – | – | – |
