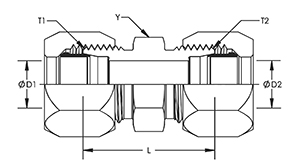

C2403 Series
Description: Compression x Compression Union
SAE: 080101
Similar Products
Parker – HBU
WeatherHead – 7305
| HnF SKU | Y Hex | T1 | D1 | T2 | D2 | L |
| C2403-02-02 | 0.438 | 5/16-24 | 0.094 | 5/16-24 | 0.094 | 1.02 |
| C2403-03-03 | 0.438 | 3/8-24 | 0.125 | 3/8-24 | 0.125 | 1.11 |
| C2403-04-04 | 0.500 | 7/16-20 | 0.203 | 7/16-20 | 0.203 | 1.18 |
| C2403-05-05 | 0.563 | 1/2-20 | 0.234 | 1/2-20 | 0.234 | 1.18 |
| C2403-06-04 | 0.625 | 9/16-18 | 0.281 | 7/16-20 | 0.203 | 1.22 |
| C2403-06-06 | 0.625 | 9/16-18 | 0.281 | 9/16-18 | 0.281 | 1.24 |
| C2403-08-06 | 0.813 | 3/4-16 | 0.422 | 9/16-18 | 0.281 | 1.33 |
| C2403-08-08 | 0.813 | 3/4-16 | 0.422 | 3/4-16 | 0.422 | 1.42 |
| C2403-10-10 | 0.938 | 7/8-14 | 0.500 | 7/8-14 | 0.500 | 1.61 |
| C2403-12-12 | 1.125 | 1-1/16-12 | 0.656 | 1-1/16-12 | 0.656 | 1.81 |
| C2403-14-14 | 1.250 | 1-3/16-12 | 0.719 | 1-3/16-12 | 0.719 | 1.81 |
| C2403-16-16 | 1.375 | 1-5/16-12 | 0.875 | 1-5/16-12 | 0.875 | 1.81 |
| C2403-20-20 | 1.688 | 1-5/8-12 | 1.094 | 1-5/8-12 | 1.094 | 1.89 |
| C2403-24-24 | 2.000 | 1-7/8-12 | 1.344 | 1-7/8-12 | 1.344 | 1.96 |
| C2403-32-32 | 2.625 | 2-1/2-12 | 1.813 | 2-1/2-12 | 1.813 | 2.11 |
