C2601 SeriesC2601-300-WP

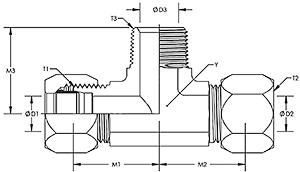

Description: Compression TEE with Male Pipe Branch Adapter

SAE: 080425

Similar Products
Parker – SBUBuy Here
WeatherHead – 7605



HnF SKU Y Hex T1 M1 D1 T2
C2601-02-02-02 0.438 5/16-24 0.77 0.094 5/16-24
C2601-04-04-02 0.438 7/16-20 0.89 0.203 7/16-20
C2601-04-04-04 0.563 7/16-20 1.03 0.203 7/16-20
C2601-05-05-02 0.563 1/2-20 0.95 0.234 1/2-20
C2601-06-06-04 0.563 9/16-18 1.05 0.281 9/16-18
C2601-08-08-06 0.750 3/4-16 1.25 0.422 3/4-16
C2601-08-08-08 0.875 3/4-16 1.35 0.422 3/4-16
C2601-10-10-08 0.875 7/8-14 1.42 0.500 7/8-14
C2601-12-12-12 1.063 1-1/16-12 1.58 0.656 1-1/16-12
C2601-14-14-12 1.313 1-3/16-12 1.66 0.719 1-3/16-12
C2601-16-16-16 1.313 1-5/16-12 1.73 0.875 1-5/16-12


HnF SKU M2 D2 T3 M3 D3
C2601-02-02-02 0.77 0.094 1/8-27 0.72 0.188
C2601-04-04-02 0.89 0.203 1/8-27 0.78 0.188
C2601-04-04-04 1.03 0.203 1/4-18 1.09 0.281
C2601-05-05-02 0.95 0.234 1/8-27 0.81 0.188
C2601-06-06-04 1.05 0.281 1/4-18 1.09 0.281
C2601-08-08-06 1.25 0.422 3/8-18 1.22 0.406
C2601-08-08-08 1.35 0.422 1/2-14 1.47 0.531
C2601-10-10-08 1.42 0.500 1/2-14 1.47 0.531
C2601-12-12-12 1.58 0.656 3/4-14 1.59 0.719
C2601-14-14-12 1.66 0.719 3/4-14 1.69 0.719
C2601-16-16-16 1.73 0.875 1-11-1/2 1.97 0.938
