C2605 SeriesC2605-300-WP

Description:

Compression TEE with Male Pipe Run

SAE: 080424

Similar Products:Buy Here
Parker – RBU
WeatherHead – 7755

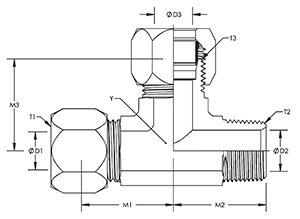

HnF SKU Y Hex T1 M1 D1 T2
C2605-04-02-04 0.438 7/16-20 0.89 0.203 1/8-27
C2605-04-04-04 0.563 7/16-20 1.03 0.203 1/4-18
C2605-05-02-05 0.563 1/2-20 0.95 0.234 1/8-27
C2605-06-04-06 0.563 9/16-18 1.05 0.281 1/4-18
C2605-06-06-06 0.750 9/16-18 1.14 0.281 3/8-18
C2605-08-06-08 0.750 3/4-16 1.25 0.422 3/8-18
C2605-08-08-08 0.875 3/4-16 1.35 0.422 1/2-14
C2605-10-08-10 0.875 7/8-14 1.42 0.500 1/2-14

C2605-14-12-14 1.313 1-3/16-12 1.66 0.719 3/4-14
C2605-16-16-16 1.313 1-5/16-12 1.73 0.875 1-11-1/2


HnF SKU M2 D2 T3 M3 D3
C2605-04-02-04 0.78 0.188 7/16-20 0.89 0.203
C2605-04-04-04 1.09 0.281 7/16-20 1.03 0.203
C2605-05-02-05 0.81 0.188 1/2-20 0.95 0.234
C2605-06-04-06 1.09 0.281 9/16-18 1.05 0.281
C2605-06-06-06 1.22 0.406 9/16-18 1.14 0.281
C2605-08-06-08 1.22 0.406 3/4-16 1.25 0.422
C2605-08-08-08 1.47 0.531 3/4-16 1.35 0.422
C2605-10-08-10 1.47 0.531 7/8-14 1.42 0.500

C2605-14-12-14 1.69 0.719 1-3/16-12 1.66 0.719
C2605-16-16-16 1.97 0.938 1-5/16-12 1.73 0.875
