Coxreels® EZ-P Series Spring Driven Performance Hose Reel
Low Pressure for Air & Water

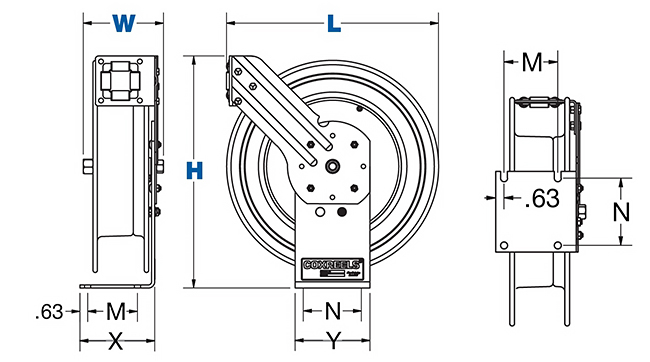

| SKU | W(in) | H (in) | L (in) | X (in) | X (in) | M (in) | N (in) |
| EZ-P-LP-125 | 5 7/8 | 14 7/8 | 13 1/2 | 5 | 6 | 3 | 5 |
| EZ-P-LPL-125 ♦ | 5 7/8 | 14 7/8 | 13 1/2 | 5 | 6 | 3 | 5 |
| EZ-P-LP-135 | 5 7/8 | 14 7/8 | 13 1/2 | 5 | 6 | 3 | 5 |
| EZ-P-LPL-135 ♦ | 5 7/8 | 14 7/8 | 13 1/2 | 5 | 6 | 3 | 5 |
| EZ-P-LP-150 | 6 3/4 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LPL-150 ♦ | 6 3/4 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LP-325 | 6 1/2 | 14 7/8 | 13 1/2 | 5 | 6 | 3 | 5 |
| EZ-P-LPL-325 ♦ | 6 1/2 | 14 7/8 | 13 1/2 | 5 | 6 | 3 | 5 |
| EZ-P-LP-330 | 6 3/4 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LPL-330 ♦ | 6 3/4 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LP-335 | 6 3/4 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LPL-335 ♦ | 6 3/4 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LP-350 | 6 3/4 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LPL-350 ♦ | 6 3/4 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LP-430 | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LPL-430 ♦ | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LP-450 | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-LPL-450 ♦ | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
♦ Hose & Bumper NOT Included
Medium Pressure for Water, Air, or Oil
| SKU | W(in) | H (in) | L (in) | X (in) | X (in) | M (in) | N (in) |
| EZ-P-MP-425 | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-MPL-425 ♦ | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-MP-430 | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-MPL-430 ♦ | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
♦ Hose & Bumper NOT Included
High Pressure for Grease Hydraulic Oil
| SKU | W(in) | H (in) | L (in) | X (in) | X (in) | M (in) | N (in) |
| EZ-P-HP-125 | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-HPL-125 ♦ | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-HP-325 | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
| EZ-P-HPL-325 ♦ | 7 | 18 5/8 | 17 1/8 | 6 | 6 | 4 | 5 |
♦ Hose & Bumper NOT Included
