Coxreels® EZ-T Series “Truck Mount” Supreme Duty Spring Driven Hose Reel

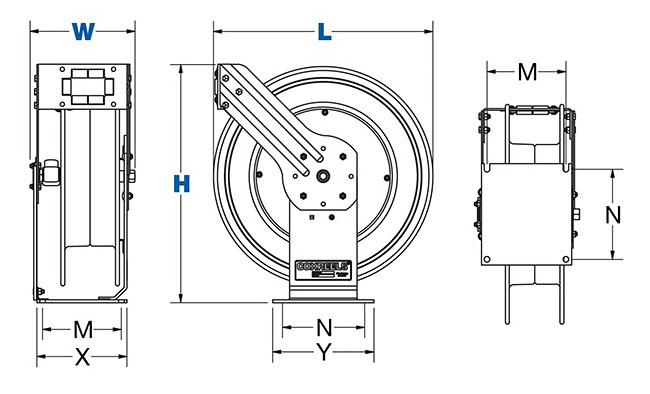

EX-T-Dimensions

Low Pressure for Air & Water

SKU W (in) H (in) L (in) X (in) Y (in) M (in) N (in)
EZ-TSH-350 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-TSHL-350 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-TSH-375 9 3/8 25 1/2 24 8 9 7 8
EZ-TSHL-375 9 3/8 25 1/2 24 8 9 7 8
EZ-TSH-3100 9 3/8 25 1/2 24 8 9 7 8
EZ-TSHL-3100 9 3/8 25 1/2 24 8 9 7 8
EZ-TSH-450 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-TSHL-450 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-TSH-475 9 3/8 25 1/2 24 8 9 7 8
EZ-TSHL-475 9 3/8 25 1/2 24 8 9 7 8
EZ-TSH-4100 9 3/8 25 1/2 24 8 9 7 8
EZ-TSHL-4100 9 3/8 25 1/2 24 8 9 7 8
EZ-TSH-535 9 7/8 25 1/2 24 8 9 7 8
EZ-TSHL-535 9 7/8 25 1/2 24 8 9 7 8
EZ-TSH-550 9 7/8 25 1/2 24 8 9 7 8
EZ-TSHL-550 9 7/8 25 1/2 24 8 9 7 8

♦ Hose & Bumper NOT Included



Medium Pressure for Air, Water, & Oil

SKU W (in) H (in) L (in) X (in) Y (in) M (in) N (in)
EZ-TMP-350 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-TMPL-350 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-TMP-375 9 3/8 25 1/2 24 8 9 7 8
EZ-TMPL-375 9 3/8 25 1/2 24 8 9 7 8
EZ-TMP-450 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-TMPL-450 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-TMP-475 9 3/8 25 1/2 24 8 9 7 8
EZ-TMPL-475 9 3/8 25 1/2 24 8 9 7 8
EZ-TMP-550 9 7/8 25 1/2 24 8 9 7 8
EZ-TMPL-550 9 7/8 25 1/2 24 8 9 7 8

♦ Hose & Bumper NOT Included



High Pressure for Grease & Hydraulic Fluid

SKU W (in) H (in) L (in) X (in) Y (in) M (in) N (in)
EZ-THP-150 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-THPL-150 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-THP-175 9 3/8 25 1/2 24 8 9 7 8
EZ-THP-175 9 3/8 25 1/2 24 8 9 7 8
EZ-THP-1100 9 3/8 25 1/2 24 8 9 7 8
EZ-THPL-1100 9 3/8 25 1/2 24 8 9 7 8
EZ-THP-350 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-THPL-350 9 3/8 21 1/4 19 1/2 8 9 7 8
EZ-THP-375 9 3/8 25 1/2 24 8 9 7 8
EZ-THPL-375 9 3/8 25 1/2 24 8 9 7 8

♦ Hose & Bumper NOT Included
