Dixon Rubber Hose Sanitary Adapter

14MPHR-200

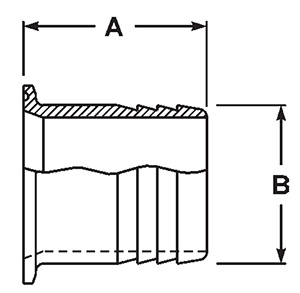

14MPHR-300DIAG



304 Stainless SKU 316L Stainless SKU Tube OD (in) Hose Size Dimension A (in) Dimension B (in)
14MPHR-R5025 1/2 1/4 1.500 0.290
14MPHR-R50 1/2 1/2 1.500 0.540
14MPHR-R5075 1/2 3/4 1.500 0.790
14MPHR-R7525 3/4 1/4 1.500 0.290
14MPHR-R753755 3/4 3/8 1.500 0.415
14MPHR-R7550 3/4 1/2 1.500 0.540
14MPHR-R75 3/4 3/4 1.500 0.790
14MPHR-R100375 1 3/8 1.500 0.415
14MPHR-R10050 1 1/2 1.500 0.540
14MPHR-G10075 14MPHR-R10075 1 3/4 1.688 0.790
14MPHR-G100 14MPHR-R100 1 1 1.688 1.040
14MPHR-G15050 14MPHR-R15050 1 1/2 1/2 1.500 0.540
14MPHR-R150625 1 1/2 5/8 1.500 0.665
14MPHR-G15075 14MPHR-R15075 1 1/2 3/4 1.500 0.790
14MPHR-G150100 14MPHR-R150100 1 1/2 1 1.687 1.040
14MPHR-G150 14MPHR-R150 1 1/2 1 1/2 1.687 1.540
14MPHR-G200150 14MPHR-R200150 2 1 1/2 2.312 1.540
14MPHR-G200 14MPHR-R200 2 2 2.312 2.040
14MPHR-G250 14MPHR-R250 2 1/2 2 1/2 2.344 2.540
14MPHR-G300 14MPHR-R300 3 3 3.094 3.040
14MPHR-G400 14MPHR-R400 4 4 3.406 4.040
14MPHR-G600 14MPHR-R600 6 6 3.406 6.040
