Dixon Sanitary Female NPT Adapter

22MP-200

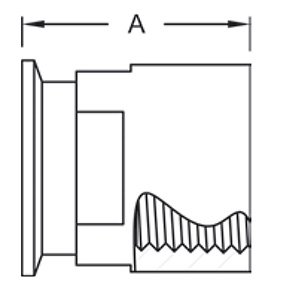

22MP-300DIAG



304 Stainless SKU 316L Stainless SKU Tube OD (in) NPT (in) Dimension A (in)
22MP-R5025 1/2 1/4 1.500
22MP-R50375 1/2 3/8 1.500
22MP-R50 1/2 1/2 1.500
22MP-R5075 1/2 3/4 1.625
22MP-R7525 3/4 1/4 1.500
22MP-R7550 3/4 1/2 1.500
22MP-R75 3/4 3/4 1.625
22MP-R10025 1 1/4 1.625
22MP-G10050 22MP-R10050 1 1/2 1.625
22MP-G10075 22MP-R10075 1 3/4 1.625
22MP-G100 22MP-R100 1 1 1.625
22MP-R100125 1 1 1/4 1.625
22MP-G15050 22MP-R15050 1 1/2 1/2 1.625
22MP-G15075 22MP-R15075 1 1/2 3/4 1.625
22MP-G150100 22MP-R150100 1 1/2 1 1.625
22MP-G150 22MP-R150 1 1/2 1 1/2 2.250
22MP-G150200 22MP-R150200 1 1/2 2 2.250
22MP-G200100 22MP-R200100 2 1 1.687
22MP-G200150 22MP-R200150 2 1 1/2 1.656
22MP-G200 22MP-R200 2 2 2.344
22MP-G200250 2 2 1/2 2.406
22MP-G250200 22MP-R250200 2 1/2 2 1.720
22MP-G250 22MP-R250 2 1/2 2 1/2 2.097
22MP-G300200 22MP-R300200 3 2 2.187
22MP-G300250 3 2 1/2 2.187
22MP-G300 22MP-R300 3 3 2.187
22MP-G400 22MP-R400 4 4 3.000
