Dixon Sanitary Stationary
STC-Series Spray Ball
Application:
- Typically used in Food and Beverage Industries for Cleaning Storage Tanks
Features:
- Heavy Duty 316L Stainless Steel Construction Provides Longer Life
- Stationary – Designed to be Mounted to a Tube or Pipe
- 2mm Spray Holes

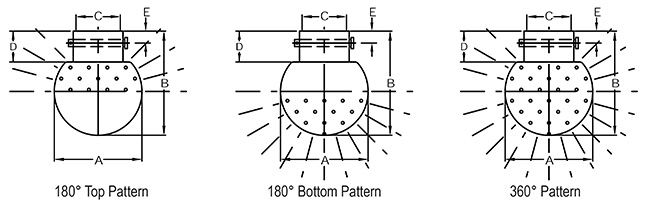

- Various Spray Patterns Available
| SKU | Pin Length (in) | Spray Pattern | A (in) | B (in) | C (in) | D (in) | E (in) | Pin Size (in) |
| STC-360-R100 | 1.47 | 360° | 2.50 | 3.04 | 1.005 | .975 | .445 | .226 |
| STC-360-R150 | 1.95 | 360° | 2.95 | 3.55 | 1.505 | 1.050 | .445 | .226 |
| STC-180B-R100 | 1.47 | 180° Bottom | 3.54 | 2.95 | 1.005 | .975 | .445 | .226 |
| STC-180B-R150 | 1.95 | 180° Bottom | 3.54 | 2.95 | 1.005 | .975 | .445 | .226 |
| STC-180T-R100 | 1.47 | 180° Top | 3.54 | 2.95 | 1.005 | .975 | .445 | .226 |
| STC-180T-R150 | 1.95 | 180° Top | 3.54 | 2.95 | 1.005 | .975 | .445 | .226 |
