Coxreels® EZ-SD Static Discharge Cable Spring Driven Hose Reel
Galvanized Steel Cable Hose Reel

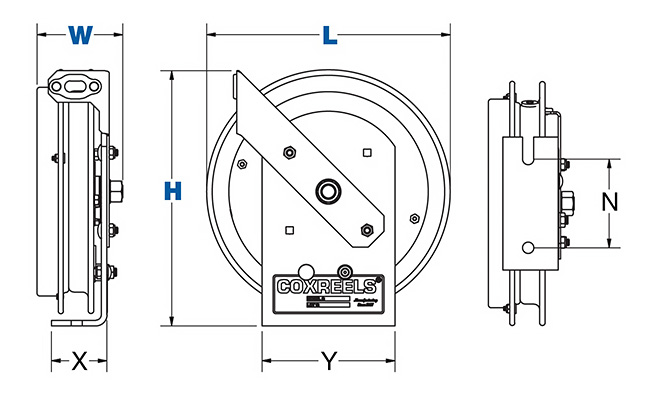

| SKU | W (in) | H (in) | L (in) | X (in) | Y (in) | N (in) |
| EZ-SD-35 | 3 7/8 | 11 1/2 | 11 | 2 1/2 | 6 | 4 |
| EZ-SD-50 | 3 7/8 | 11 1/2 | 11 | 2 1/2 | 6 | 4 |
| EZ-SDL-50 ♦ | 3 7/8 | 11 1/2 | 11 | 2 1/2 | 6 | 4 |
| EZ-SD-75 | 4 | 15 | 14 1/2 | 2 1/2 | 6 | 4 |
| EZ-SD-100 | 4 | 15 | 14 1/2 | 2 1/2 | 6 | 4 |
| EZ-SDL-100 ♦ | 4 | 15 | 14 1/2 | 2 1/2 | 6 | 4 |
♦ Cable NOT Included
Stainless Steel Cable Hose Reel
| SKU | W (in) | H (in) | L (in) | X (in) | Y (in) | N (in) |
| EZ-SD-35-1 | 3 7/8 | 11 1/2 | 11 | 2 1/1 | 6 | 4 |
| EZ-SD-50-1 | 3 7/8 | 11 1/2 | 11 | 2 1/1 | 6 | 4 |
| EZ-SD-75-1 | 4 | 15 | 14 1/2 | 2 1/2 | 6 | 4 |
| EZ-SD-100-1 | 4 | 15 | 14 1/2 | 2 1/2 | 6 | 4 |
