Coxreels® EZ-SG Side Mount with Guide Arm Spring Driven Hose Reel Diagram

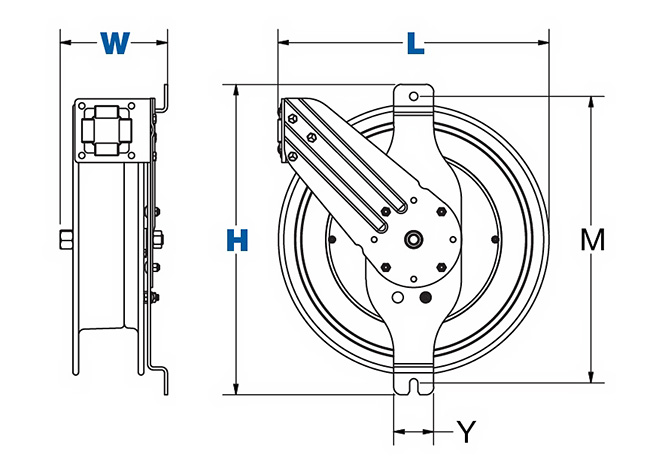

EZ-SG-Dimensions

Low Pressure for Air, Water, or Oil

SKU W (in) H (in) L (in) Y (in) M (in)
EZ-SG13-L125 6 1/4 15 1/4 13 1/2 2 1/2 14
EZ-SG13-L135 6 1/4 15 1/4 13 1/2 2 1/2 14
EZ-SG13-L325 6 3/4 15 1/2 13 1/2 2 1/2 14
EZ-SG17-L350 6 3/4 19 1/2 17 2 1/2 18
EZ-SG17-L430 6 3/4 19 1/2 17 2 1/2 18
EZ-SG19-L450 8 1/2 22 19 1/2 2 7/8 20 1/2



Medium Pressure for Air, Water, or Oil

SKU W (in) H (in) L (in) Y (in) M (in)
EZ-SG17-M325 6 3/4 19 1/2 17 2 1/2 18
EZ-SG19-M350 8 1/2 22 19 1/2 2 7/8 20 1/2
EZ-SG17-M425 7 1/4 19 1/2 17 2 1/2 18
EZ-SG19-M450 9 3/8 22 19 1/2 2 7/8 20 1/2



High Pressure for Grease & Hydraulic Oils

SKU W (in) H (in) L (in) Y (in) M (in)
EZ-SG17-H125 7 1/4 19 1/2 17 2 1/2 18
EZ-SG19-H150 9 22 19 1/2 2 7/8 20 1/2
EZ-SG17-H325 7 1/4 19 1/2 17 2 1/2 18
EZ-SG19-H350 9 1/2 22 19 1/2 2 7/8 20 1/2
