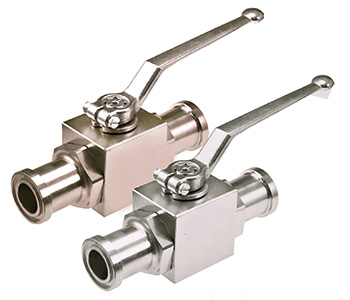

Flange Head High Pressure Ball Valve

BVHP-FL-WP

Quality:

  • Carbon Steel with Zinc Chromate Plating (RoHS Compliant)
  • POM Seats & Buna O-Rings Standard on Carbon Steel Valves

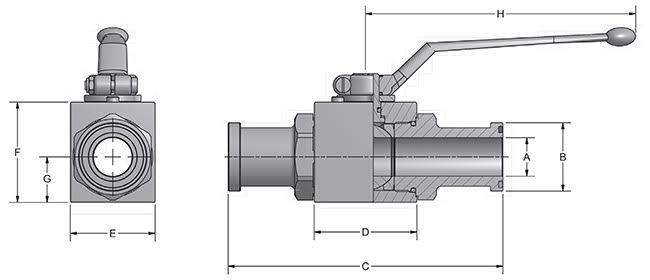

BVHP -FL Diagram

SKU Code PSI MAX A BORE B C D E F G H
BVHP-08FL 61 5000 0.51 1.19 5.96 1.91 1.46 1.70 0.71 4.33
BVHP-12FL 61 5000 0.79 1.50 6.38 2.46 1.77 2.17 0.92 7.09
BVHP-16FL 61 5000 0.98 1.75 7.00 2.62 2.17 2.56 1.16 7.09
BVHP-08FLH 62 6000 0.51 1.24 5.96 1.91 1.46 1.70 0.71 4.33
BVHP-12FLH 62 6000 0.79 1.63 6.85 2.46 1.77 2.17 0.92 7.09
BVHP-16FLH 62 6000 0.98 1.88 7.80 2.62 2.17 2.56 1.16 7.09
