Full Port Soldered Ball Valve

BV42-WPQuality:

  • 24 hr 100% Seal Test Guaranteed
  • Dual Sealing System Allows Valve to be Operated in Either Direction
  • No Metal-To-Metal Moving Part
  • Handle Clearly Shows Ball Position
  • Silicone-Free Lubricant on all Seals
  • Chrome Plated Brass Ball for Longer Life
  • Handle Stops on Body to Avoid Stresses at Stem



Body:

  • Hot Forged and Blasted, Unplated Brass Body and Cap Sealed with Loctite® or Equivalent Thread Sealant
  • Finest Brass According to EN 12165 and EN 12164 (Formerly DIN 17660 and UNI 5705-65) Specifications



Stem:

  • Blowout-Proof Nickel Plated Brass Stem
  • Pure PTFE Adjustable Packing Gland and Reinforced Washer for Lower Torque and Easy Maintenance



Seals:

  • Pure PTFE Self -Lubricating Seats with Flexible-Lip Design



Threads:

  • Solder End Female by Female Connections



Flow:

  • Full Port to DIN 3357 for Maximum Flow



Handle:

  • Geomet® Carbon Steel Handle with thick PVC Dip Coating
  • Handle Coating Offers Both Thermal and Electrical Protection
  • Handle Removable with Valve in Service



Working Pressure:

  • 600 psi Up to 2″, 450 psi Over 2″
  • Non-Shock Cold Working Pressure
  • 150 psig Non-Shock Working Steam Pressure
  • Not Suitable for Throttling Steam



Working Temperature:

  • -4° F  to +366° F



Options Up To 2″ Size:

  • Stem Extension (Assemble after Soldering)
  • Lead Free for Safe Drinking Water (0.25% or less Pb)
  • AISI 430 Stainless Steel Handle
  • 1/8″ NPT Side Tap Only for 1/2″ and 3/4″
  • Oval Lockable Handle up to 2″, Round over 2″
  • Patented Locking Device for Valves up to 3″

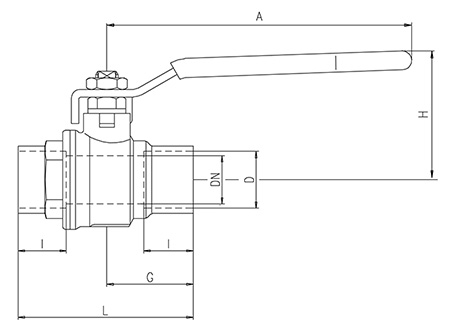

BV42_Dimensions

*Dimensions in Inches

BV42 08 12 16 20 24 32 40 48
D 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3
D 0.6271 0.8771 1.1279 1.3779 1.6279 2.1279 2.628 3.128
DN 0.590 0.787 0.984 1.259 1.574 1.968 2.559 3.149
I 0.492 0.748 0.905 0.964 1.102 1.338 1.476 1.673
L 2.244 2.854 3.346 3.819 4.488 5.433 6.614 7.598
G 1.181 1.476 1.673 1.909 2.244 2.716 3.307 3.799
A 3.937 4.724 4.724 6.220 6.220 6.220 10.039 10.039
H 1.695 1.988 2.153 2.988 3.236 3.500 5.196 5.511

BV42_Pressure-Temperature

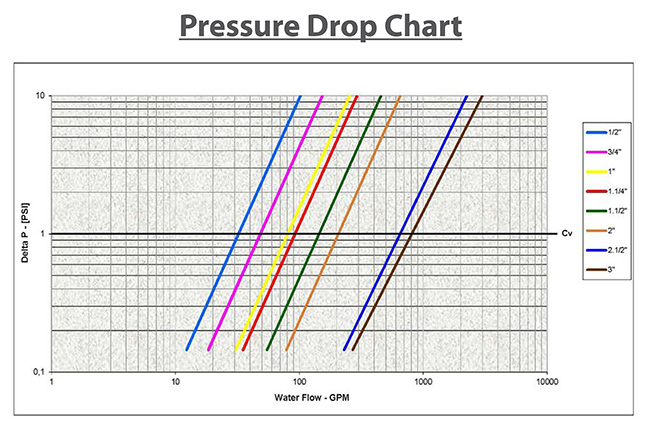

BV42_Pressure Drop

BV42 Solder Joints
