Hosetract C Series High Pressure Hose Reel with Rear Floor Mount

C-Series_WP

Features:  Made In USA

  • High Pressure Reels are used Exclusively where Grease is Being Applied as in Lube Applications
  • Used in Off-Road Service or Garage Lube Systems
  • Standard 2-Wire Braid Hose Furnished
  • Inlet 1/2″ FTP
  • Mounting Slots 1/2″ Wide x 3/4″ Deep for Maximum 7/16″ Diameter Bolt
  • Use with 1/4″, 3/8″, and 1/2″ Hose ID
  • Maximum Temperature 200°F

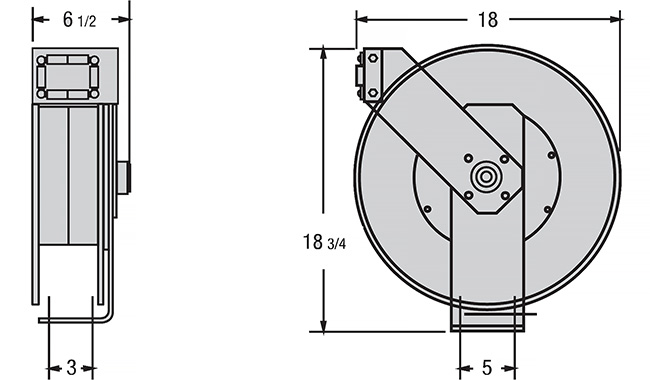

C-Series Diag-650



SKU Operating Pressure (psi) Hose ID (in) Hose Length (ft) Weight (lbs)
HC-200-RM  ♦ 8000 1/4 46
HC-240-RM 5000 1/4 40 56
HC-250-RM 5000 1/4 50 59
HC-300-RM  ♦ 8000 3/8 46
HC-330-RM 4000 3/8 30 56
HC-340-RM 4000 3/8 40 58
HC-350-RM 4000 3/8 50 62

♦ Models with OUT Hose
