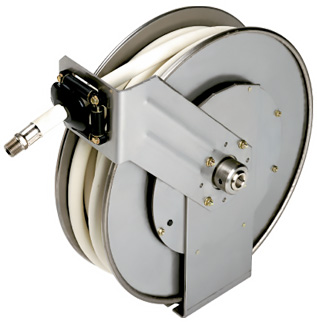

Hosetract CS Series Hose Reel with Rear Floor Mount

Features:

• 304 Stainless Steel Reel
• Used in Harsh Environments Such as Chemical Clean Up
• Used  in Exceptionally Clean area has to be Maintained  for Food or Beverage Process
• The Latch Mechanism is Non-Sparking in the Event Flammable Gases or Liquids are Present
• Only available in Low Pressure
• Inlet 1/2″ FPT

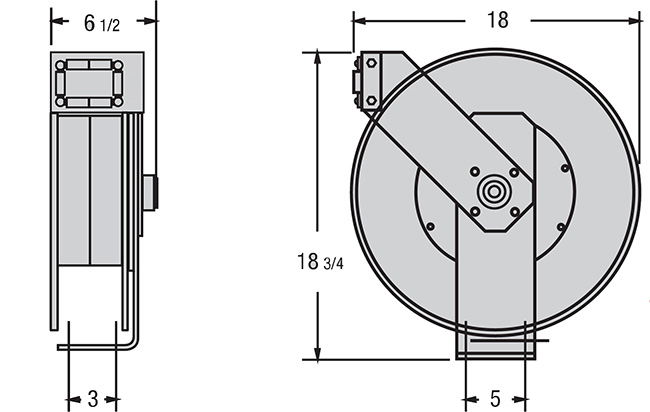

• Mounting Slots 1/2″ Wide x 3/4″ Deep for Maximum 7/16″ Diameter Bolt
• Maximum Temperature:  200°F



SKU	Operating Pressure (psi)	Hose ID (in)	Hose Length (ft)	Weight (lbs)
LCS-300-RM ♦	1000	3/8	–	40
LCS-340-RM	300	3/8	40	44
LCS-350-RM	300	3/8	50	45
LCS-370-RM	300	3/8	70	51
LCS-500-RM ♦	1000	1/2	–	41
LCS-540-RM	300	1/2	40	50
LCS-550-RM	300	1/2	50	56

♦Models With OUT Hose
