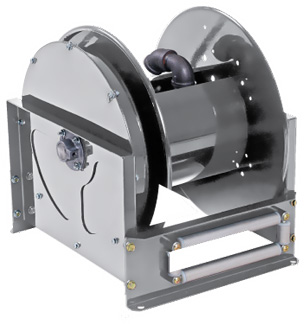

Hosetract DS Series Low Pressure Hose Reel

DS-Series-WP

Features: Made In USA

  • 304 Stainless Steel
  • Used for Harsh Environments such as Chemical Clean up
  • Used in Food or Beverage Areas
  • The Latch Mechanism is Non-Sparking in the Event Flammable Gases or Liquids are present
  • Only Available in Low Pressure
  • Inlet 1″ FPT
  • For 3/4″ and 1″ Hose ID
  • Mounting Holes are 1/2″ Diameter
  • Maximum Temperature:  200°F

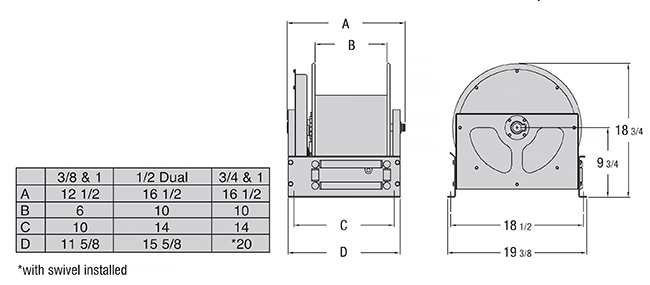

DS Series DIAG-650



SKU Operating Pressure (psi) Hose ID (in) Hose Length (ft) Weight (lbs)
LDS-700   300 3/4 73
LDS-740 300 3/4 40 75
LDS-750 300 3/4 50 80
LDS-770 300 3/4 70 86
LDS-1000   300 1 73
LDS-1025 300 1 25 80
LDS-1045 300 1 45 90

♦Models with OUT Hose
