Hosetract E Series Motor Driven Hose Reels for 3/4″ & 1″ ID Hose

E-Series-WP

Features:Made In USA

  • 12 Volt DC Motor Driven for Applications in Lawn Care, Agricultural, Service Truck and Industrial uses
  • Motor Sprocket and Chain Pinch Points are Safe Guarded
  • Flow Through Shaft for Universal Installation
  • Self Lubricating ABS Bearings
  • External Swivel – Standardized O-Rings can be Changed by Removing One Retaining Ring
  • Motor Bracket Assembly Allows Ease of Chain Tightening
  • Mounting Base is Light and Strong
  • Inlet 5 – 1/2″ FPT    10 – 1″ FPT
  • Mounting Holes 1/2″ Diameter
  • Maximum Temperature:  200°F

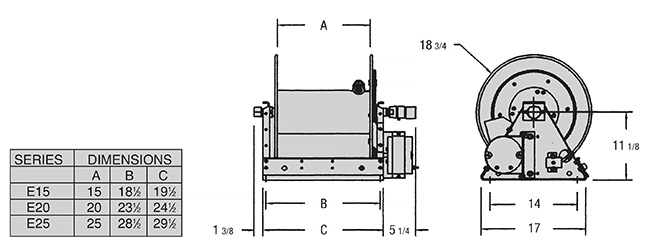

E Series- 650



SKU Operating Pressure (psi) Capacity Hose ID 3/8″ (ft) Capacity Hose ID 1/2″ (ft) Shipping Weight (lbs)
E15-10 300 100 75 66
E20-10 300 125 100 70
E25-10 300 150 125 74
