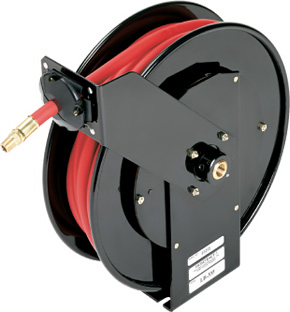

Hosetract HB Series High Pressure Hose Reels With Standard Front Mount
Features:
- High Pressure for use with Grease
- Standard 2-Wire Braid Hose Furnished
- For 1/4″ and 3/8″ Hose ID
- The “B” Series Reels are Applied Well Where Shorter, Low Volume Hoses are Used
- Use in Auto-Truck Service Garages
- All Brass Main Shaft and Swivel Assure Less Corrosion for Extended Seal Life in the Low Pressure Rating (up to 1000 psi)
- Mounting Slots 3/8″ wide x 3/4″ deep for Maximum 5/16″ Diameter Bolt
- Inlet – 3/8 FPT
- Maximum Temperature: 200°F
| SKU | Operating Pressure (psi) | Hose ID (in) | Hose Length (ft) | Weight (lbs) |
| HB-200-SF ♦ | 8000 | 1/4 | – | 23 |
| HB-220-SF | 5000 | 1/4 | 20 | 29 |
| HB-225-SF | 5000 | 1/4 | 25 | 30 |
| HB-230-SF | 5000 | 1/4 | 30 | 31 |
| HB-235-SF | 5000 | 1/4 | 35 | 32 |
♦ Model with OUT Hose
