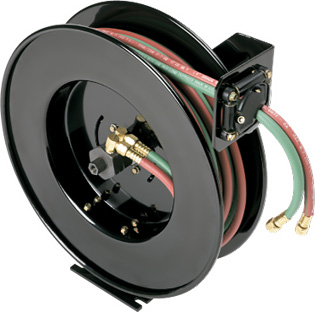

Hosetract Oxygen/Acetylene Hose Reel with Standard Front Mount


Features:  Made In USA

  • Reel is Ideally Applied When Space and Safety is Required in the Welding and Cutting Area
  • The Reel is Capable of Storing and Dispensing 50′ Length of Twin Siamese Welding Hose
  • The Exclusive Dual Hex was Designed by the Original Designer of This Dual Body Concept
  • The Major Advantage of the Swivel Design is That in the Event of an O-Ring Failure, the Gases will go to Atmosphere Instead of Mixing
  • Safety Banded Drive Spring
  • The Swivel is Marked for the Acetylene Side with Notches on the Hex Nuts for Easy Identification
  • Beaded Edges on Spool Prevents Hose Damage or Injury to Operator
  • 8-Position Guide Arm
  • Oxygen Inlet 1/4″ FPT
  • Acetylene Hose 1/4″ FPT
  • Mounting Slots 1/2″ Wide x 3/4″ Deep for Maximum 7/16″ Bolt
  • Maximum Temperature 200°F

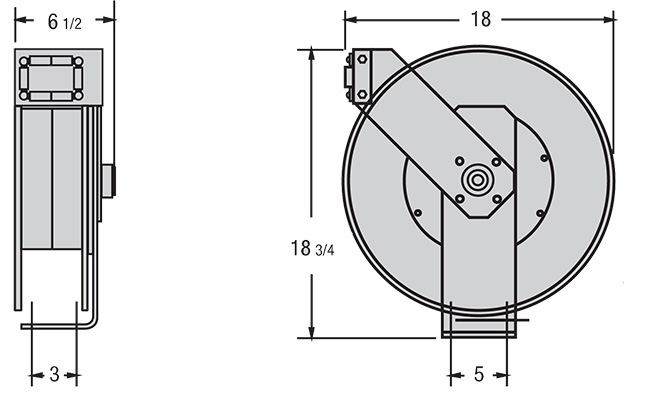

Oxy Ace Diag


SKU Operating Pressure (psi) Hose ID (in) Hose Length (ft) Weight (lbs)
COA-200-SF      1000 1/4 43
COA-250-SF      200 1/4 50 54
UTL-200-OA-SF     ♦ 1000 1/4 36
UTL-250-OA-SF     200 1/4 50 44

 COA Models are the C Series- Heavy Duty Standard Reels

UTL Models are The Unitract™ Series – Lighter Duty Reels NOT designed for Truck Mount Applications

♦ Models With OUT Hose
