Hosetract Manual Driven Stack Frame Hose Reel For 3/8″ & 1/2″ Hose ID

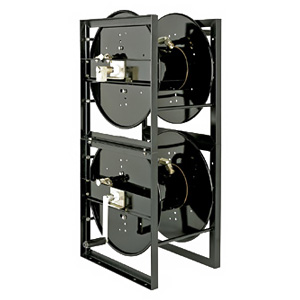

Stackable-WP

Features: Made In USA

  • Manual Driven Hose Reel used where Long Lengths of Hose are Required
  • Use in Agriculture, Power Wash, Pest Control and Construction Trades
  • Hose is Dispensed and Retracted  easier than Coiling by Hand
  • Flow Through Shaft for Universal Installation
  • Stack Capability with No Added Parts
  • Self  Lubricating ABS Bearings
  • External Swivel – Heavy Duty 4000 psi for Longer Service
  • Fully Adjustable Brake – Adjust Tension with Hand Knob
  • Positive Lock Pin
  • Mounting Base is Light and Strong
  • 3 or 4 Roller Kits can be Mounted Top or Bottom Position (Sold Separately)
  • Inlet – 1/2″ Female Through Swivel
  • Mounting Holes 1/2″ Diameter
  • Maximum Temperature: 200°F

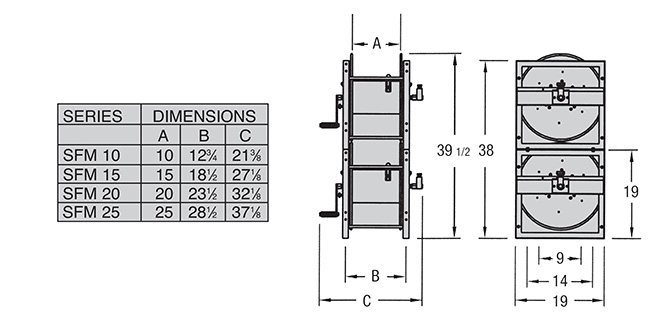

Stack Sm-650

SKU Operating Pressure (psi) Capacity Hose ID 3/8″ (ft) Capacity Hose ID 1/2″ (ft) Shipping Weight (lbs)
SFM10-5 4000 250 175 40
SFM15-5 4000 350 275 49
SFM20-5 4000 450 375 59
SFM25-5 4000 550 475 72
