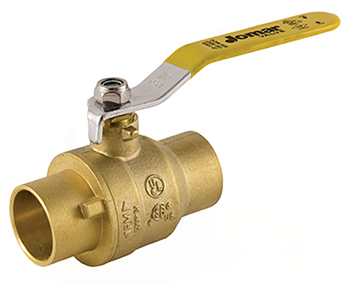

BV42 Full Port Solder Connection Brass Ball Valve
Features:
- Full Port Solder Connection 600 WOP
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- 100% Leak Tested
Approvals:
- UL Listed up to 175 PSI (1/2″ – 2″)
- MHKZ – Manual Valves
- YRPV – Gas Shut-Off Valves
- FM Approval (1/2″ – 1-1/2″ 60 WOG, 2″ 500 WOG)
- MSS SP-110
- ASME/ANSI B16.18
| SKU | Size (Inch) | A | B | C | D | E |
| BV42-08 | 1/2 | 2.17 | 1.81 | 3.35 | 0.59 | 0.50 |
| BV42-12 | 3/4 | 2.80 | 2.36 | 4.29 | 0.75 | 0.75 |
| BV42-16 | 1 | 3.27 | 2.52 | 4.29 | 0.98 | 0.86 |
| BV42-20 | 1 1/4 | 4.10 | 2.52 | 5.63 | 1.26 | 1.08 |
| BV42-24 | 1 1/2 | 4.33 | 2.72 | 5.63 | 1.57 | 0.98 |
| BV42-32 | 2 | 5.34 | 3.03 | 5.63 | 1.97 | 1.21 |
| BV42-40 | 2 1/2 | 6.39 | 4.25 | 7.76 | 2.52 | 1.48 |
| BV42-48 | 3 | 7.10 | 4.92 | 8.37 | 2.95 | 1.66 |
| BV42-64 | 4 | 9.56 | 5.85 | 9.25 | 3.90 | 2.22 |

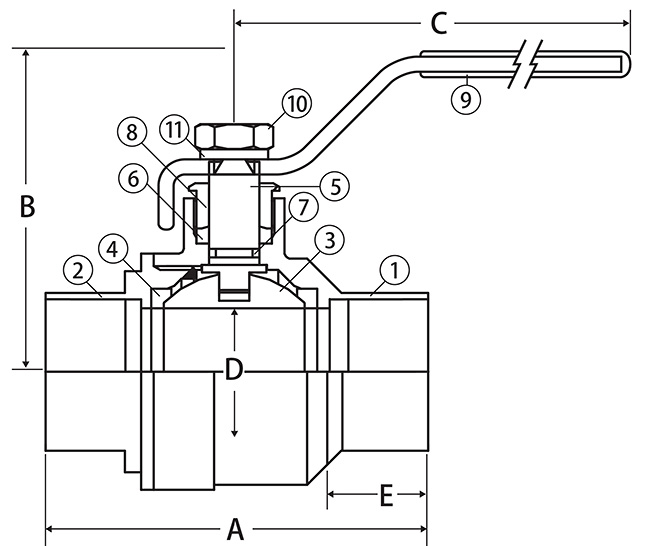

Dimensions
| Part | Materials |
| 1 Body | Brass – C37700 |
| 2 End Connection | Brass – C37700 |
| 3 Ball | Chrome Plated Brass – C37700 |
| 4 Seat (2) | PTFE |
| 5 Stem ♦ | Brass – C37700 |
| 6 Packing | PTFE |
| 7 Stem-O-Ring | Buna-N |
| 8 Packing Gland | Brass – C37700 |
| 9 Handle | Steel – Chrome Plated |
| 10 Handle Nut | Steel – Chrome Plated |
| 11 Lock Washer | Steel – Chrome Plated |
♦ 3″ & 4″ have 304 Stainless Steel Stem
