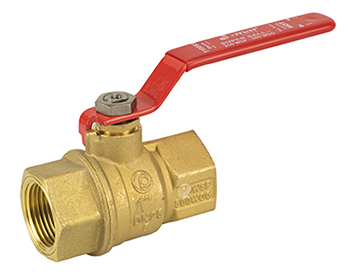

Full Port Threaded Connection Brass Ball Valve

BV92-350

Features:

  • 600 WOG
  • Full Port w/Threaded Connection
  • Blow-Out Proof Stem
  • Triple Sealing Stem with 2 Viton® O-Rings and Teflon® Seal
  • 250 WSP Rating
  • Patent Pending Design
  • Special High Temperature Resistant Handle
  • 100% Leak Tested
  • 100% Make in Italy
  • Leakproof Stem – Lifetime Warranty
  • 29 In-Hg Vacuum Rating

Approvals:

  • MSS SP-110
  • ANSI B1-20.1



SKU Size (Inch) A B C D Cv
BV92-08 1/2 2.45 1.53 2.95 0.59 16.82
BV92-12 3/4 2.71 1.95 3.74 0.79 34.80
BV92-16 1 3.30 2.40 4.75 0.97 52.20
BV92-20 1 1/4 3.80 2.59 4.75 1.23 112.52
BV92-24 1 1/2 4.16 3.22 6.00 1.49 174.00
BV92-32 2 5.00 3.40 6.00 1.99 255.20

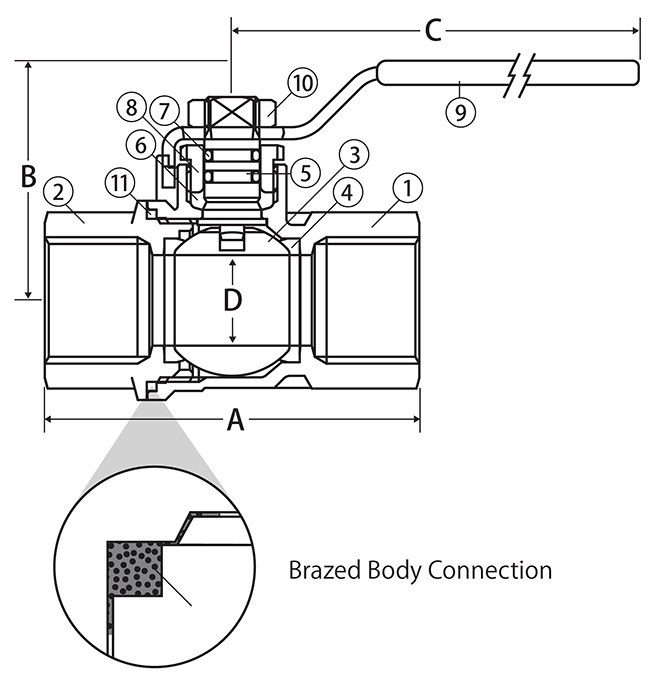

Dimensions

BV92-diag



Part Materials
1 Body Brass – CW617N
2 End Connection Brass – CW617N
3 Ball 316 Stainless Steel
4 Seat (2) PTFE Carbon Graphite
5 Stem 316 Stainless Steel
6 Packing PTFE Carbon Graphite
7 Stem-O-Ring (2) Vitron®
8 Packing Gland Brass – CW617N
9 Handle Steel – Red Coated
10 Handle Nut 316 Stainless Steel
11 Brazing Ring BrazeTec Soldamoll

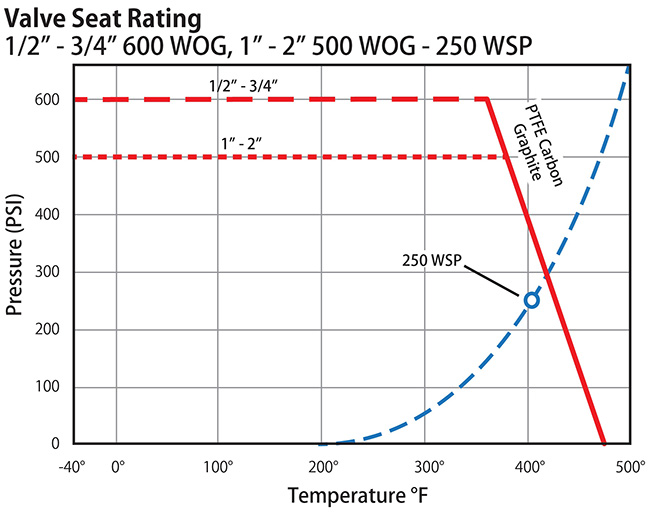

BV92-graph
