BV95-LF Lead Free Brass Ball Valve
Features:

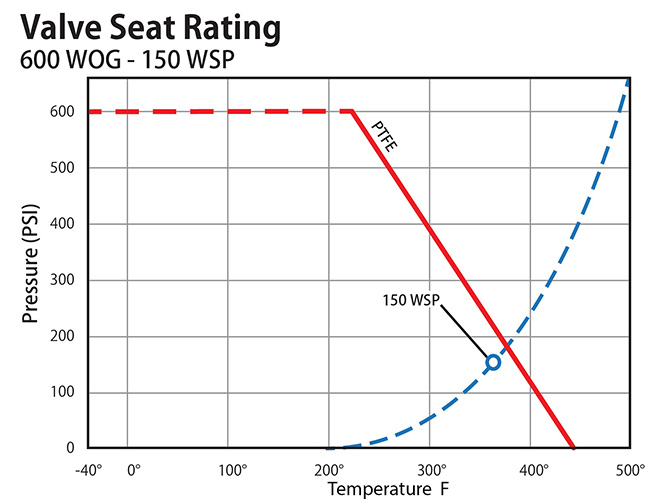

- 600 PSI Working Pressure
- Stainless Steel Ball and Stem
- Dezincification Resistant Brass
- Gland Follower and Single-O-Ring Stem Design
- Blow-Out Proof Stem
- 100% Leaks Tested
- Wetted Surfaces Contain Less than 25% Lead Content
Approvals:
- UL Listed up to 175 PSI(1/4″ – 2″)
- MHKZ – Manual Valves
- YRPV -Gas Shut Off Valves
- IAPMO Certified
- NSF 61-8
- NSF 372
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
- CSA Certified
- CGA 3.16 (125 PSIG) (1/4″ – 2″)
- ANSI Z21.15 (.5 PSIG) (1/4″ -2″)
- CGA CR91 (5 PSIG) (1/4″ – 2″)
- ASME B16.44 (5 PSIG) (1/4″ – 2″)
- ASME B16.33 (125 PSIG) (1/2″ – 2)
- MSS SP-110
- ANSI B1.20.1
- RoHS Compliant

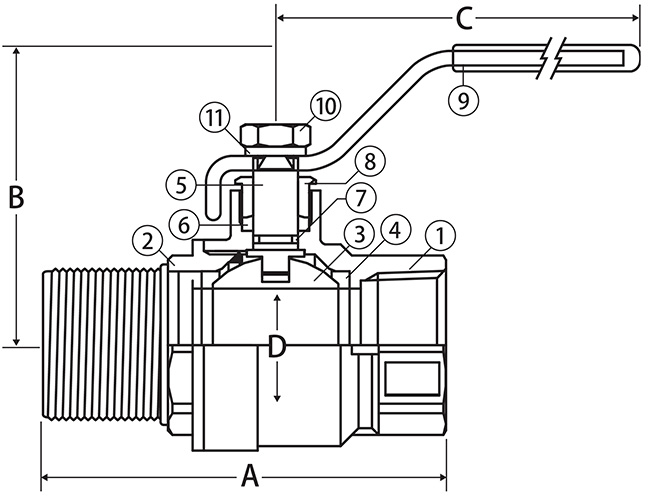

| Part | Size (Inch) | A | B | C | D |
| BV95-04LF | 1/4 | 1.73 | 1.69 | 3.35 | 0.39 |
| BV95-06LF | 3/8 | 1.73 | 1.69 | 3.35 | 0.39 |
| BV95-08LF | 1/2 | 2.28 | 1.81 | 3.35 | 0.59 |
| BV95-12LF | 3/4 | 2.51 | 2.36 | 4.29 | 0.75 |
| BV95-16LF | 1 | 2.97 | 2.52 | 4.29 | 0.98 |
| BV95-20LF | 1 – 1/4 | 3.45 | 2.52 | 5.63 | 1.26 |
| BV95-24LF | 1 – 1/2 | 3.87 | 3.03 | 5.63 | 1.57 |
| BV95-32LF | 2 | 4.29 | 4.25 | 5.63 | 1.97 |
| BV95-40LF | 2 – 1/2 | 5.59 | 4.92 | 7.76 | 2.52 |
| BV95-48LF | 3 | 6.34 | 5.85 | 8.37 | 2.95 |
| BV95-64LF | 4 | 7.83 | 5.85 | 9.25 | 3.90 |
Dimensions
| Part | Materials |
| 1 Body | Lead Free Brass – C46500 |
| 2 End Connection | Lead Free Brass – C46500 |
| 3 Ball | 304 Stainless Steel |
| 4 Seat (2) | PTFE |
| 5 Stem | 304 Stainless Steel |
| 6 Packing | PTFE |
| 7 Stem-O-Ring | Buna-N |
| 8 Packing Gland | Lead Free Brass – C46500 |
| 9 Handle | Steel – Chrome Plated |
| 10 Handle Nut | Steel – Chrome Plated |
| 11 Lock Washer | Steel – Chrome Plated |
