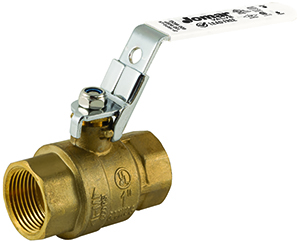

Lead Free Brass Ball Valve with Locking Handle
Features:
- 600 PSI Working Pressure
- Stainless Steel Ball and Stem
- Dezincification Resistant Brass
- Gland Follower and Single-O-Ring Stem Design
- Blow-Out Proof Stem
- 100% Leaks Tested
- Wet Surfaces Contain Less than 25% Lead Content
Approvals:
- UL Listed up to 175 PSI(1/4″ – 2″)
- MHKZ – Manual Valves
- YRPV -Gas Shut Off Valves
- IAPMO Certified
- NSF 61-8
- NSF 372
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
- CSA Certified
- CGA 3.16 (125 PSIG) (1/4″ – 2″)
- ANSI Z21.15 (.5 PSIG) (1/4″ -2″)
- CGA CR91 (5 PSIG) (1/4″ – 2″)
- ASME B16.44 (5 PSIG) (1/4″ – 2″)
- ASME B16.33 (125 PSIG) (1/2″ – 2)
- MSS SP-110
- ANSI B1.20.1
- RoHS Compliant

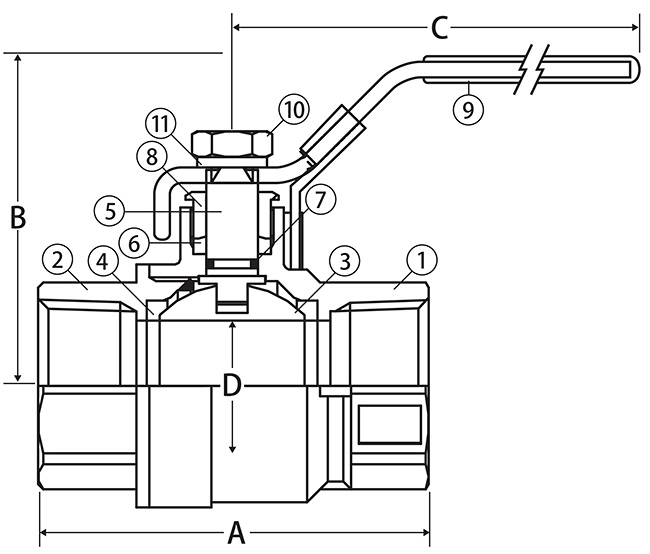

Dimensions
Part | Size (Inch) | A | B | C | D |
BV95-04LFLH | 1/4 | 1.73 | 2.63 | 4.49 | 0.39 |
BV95-06LFLH | 3/8 | 1.73 | 2.63 | 4.49 | 0.39 |
BV95-08LFLH | 1/2 | 2.28 | 2.69 | 4.49 | 0.59 |
BV95-12LFLH | 3/4 | 2.52 | 2.91 | 4.86 | 0.75 |
BV95-16LFLH | 1 | 2.97 | 3.22 | 4.86 | 0.98 |
BV95-20LFLH | 1 – 1/4 | 3.44 | 3.45 | 5.59 | 1.26 |
BV95-24LFLH | 1 – 1/2 | 3.88 | 3.59 | 5.59 | 1.57 |
BV95-32LFLH | 2 | 4.29 | 3.97 | 5.59 | 1.97 |
BV95-40LFLH | 2 1/2 | 5.59 | 4.88 | 7.35 | 2.52 |
BV95-48LFLH | 3 | 6.34 | 5.25 | 7.35 | 2.95 |
Part | Materials |
1 Body | Lead Free Brass – C46500 |
2 End Connection | Lead Free Brass – C46500 |
3 Ball | 304 Stainless Steel |
4 Seat (2) | PTFE |
5 Stem | 304 Stainless Steel |
6 Packing | PTFE |
7 Stem-O-Ring | Buna-N |
8 Packing Gland | Lead Free Brass – C46500 |
9 Handle | Steel – Chrome Plated |
10 Handle Nut | Steel – Chrome Plated |
11 Lock Washer | Steel – Chrome Plated |
