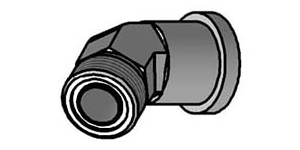

Male Flat Face By Code 61 & 62 Flange 45°
Split Flange Adapter for use with SAE J158 Split Flanges
These Adapters offer Many Cost-Saving Features:
- One-Piece Carbon Steel Construction – Simplifies Installation & Eliminates Potential Leak Problems
- Zinc Dichromate Finish
- Compact Design – Simplifies Assembly
Code 61

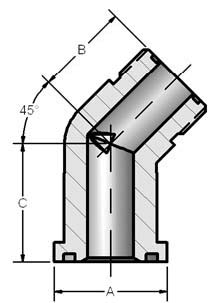

| SKU | Tube OD | Flange Size | A | B | C | Thread |
| 344-12-12 | 3/4 | 3/4 | 1.500 | 1.28 | 1.58 | 1 3/1612 |
| 344-16-16 | 1 | 1 | 1.750 | 1.47 | 1.85 | 1 17/16-12 |
| 344-20-20 | 1 1/4 | 1 1/4 | 2.000 | 1.59 | 2.04 | 1 11/16-12 |
| 344-24-24 | 1 1/2 | 1 1/2 | 2.375 | 1.78 | 2.38 | 2-12 |
Code 62
| SKU | Tube OD | Flange Size | A | B | C | Thread |
| 644-12-12 | 3/4 | 3/4 | 1.500 | 1.28 | 1.58 | 1 3/16-12 |
| 644-16-16 | 1 | 1 | 1.750 | 1.47 | 1.85 | 1 17/16-12 |
| 644-20-20 | 1 1/4 | 1 1/4 | 2.000 | 1.59 | 2.04 | 1 11/16-12 |
| 644-24-24 | 1 1/2 | 1 1/2 | 2.375 | 1.78 | 2.38 | 2-12 |
