Miniature Series Worm Gear Clamps

Features & Sizing



Mini-Worm-Group-164-BOX

  • Seven Sizes – The Widest Selection in the Industry
  • Small Enough to Install in Very Tight Places
  • Strong Enough to Give a TIght Lasting Seal That Won’t Shake Loose
  • Precision Engineered for Dependability
  • For use on Fuel Lines, Air Lines, Fluid Lines, Hose and Tubing

Partial Stainless

  • The 5/16″ Band is Made of a 300 Series Stainless Steel
  • The Housing and 1/4″ Hex Head Screw is Made From a Plated Carbon Steel

All Stainless

  • The 5/16″ Band and Housing are Made of a 300 Series Stainless Steel
  • The 1/4″ Hex Head Screw is 400 Series Stainless Steel

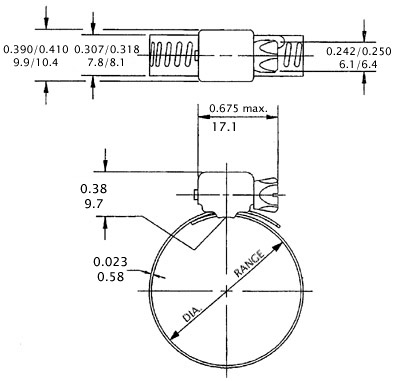

Dimensions Diagram


Partial Stainless Part # Stainless Steel Part # Clamp Diameter Min. Clamp Diameter Max.
WGN-04 WGN-04SS 7/32″ 5/8″
WGN-06 WGN-06SS 5/16″ 7/8″
WGN-08 WGN-08SS 7/16″ 1″
WGN-10 WGN-10SS 1/2″ 1-1/16″
WGN-12 WGN-12SS 9/16″ 1-1/4″
WGN-16 WGN-16SS 11/16″ 1-1/2″
WGN-20 WGN-20SS 7/8′ 1-3/4″
