Male JIC x Code 61 and Code 62

Flange 45° Adapter

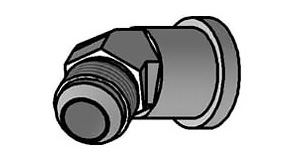

1_MJ-FL-45-300-II

Split Flange Adapter for use with SAE J158 Split Flanges

These Adapters offer Many Cost-Saving Features:

  • One-Piece Carbon Steel Construction – Simplifies Installation & Eliminates Potential Leak Problems
  • Zinc Dichromate Finish
  • Compact Design – Simplifies Assembly

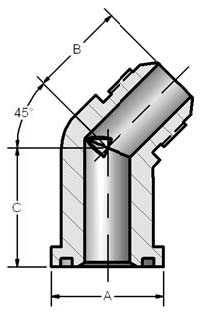

1_MJ-FL-45DIAGRAM

Code 61

SKU Tube OD Flange Size A B C Thread
340-12-12 3/4 3/4 1.50 1.28 1.58 1 1/16-12
340-16-16 1 1 1.75 1.47 1.85 1 5/16-12
340-20-20 1 1/4 1 1/4 2.00 1.59 2.04 1 5/8-12
340-24-24 1 1/2 1 1/2 2.38 1.78 2.38 1 7/8-12
340-32-32 2 2 2.81 2.22 3.00 2 1/2-12

Code 62

SKU Tube OD Flange Size A B C Thread
640-12-12 3/4 3/4 1.50 1.28 1.58 1 1/16-12
640-16-16 1 1 1.75 1.47 1.85 1 5/16-12
640-20-20  1 1/4 1 1/4 2.00 1.59 2.04 1 5/8-12
640-24-24 1 1/2 1 1/2 2.38 1.78 2.38 1 7/8-12
640-32-32 2 2 2.81 2.22 3.00 2 1/2-12
