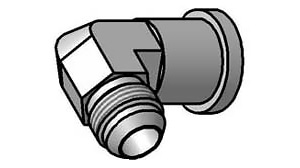

Male JIC x 90° Code 61 & Code 62 Flange



MJ-FL-90-300



Split Flange Adapter for use with SAE J158 Split Flanges

These Adapters offer Many Cost-Saving Features:

  • One-Piece Carbon Steel Construction – Simplifies Installation & Eliminates Potential Leak Problems
  • Zinc Dichromate Finish
  • Compact Design – Simplifies Assembly

1_MJ-FL61-62-90-Diagram



Code 61

SKU Tube OD (in) Flange Size A B C Thread (in)
390-08-12 1/2 3/4 1.500 1.66 2.13 3/4-16
390-12-12 3/4 3/4 1.500 1.66 2.13 1  1/16-12
390-16-12 1 3/4 1.500 1.66 2.13 1  5/16-12
390-12-16 3/4 1 1.750 1.81 2.37 1  1/16-12
390-16-16 1 1 1.750 1.81 2.37 1  5/16-12
390-20-16 1 1/4 1 1.750 1.81 2.37 1  5/8-12
390-12-20 3/4 1 1/4 2.000 2.06 2.62 1  1/16-12
390-16-20 1 1 1/4 2.000 2.06 2.62 1  5/16-12
390-20-20 1 1/4 1 1/4 2.000 2.06 2.62 1  5/8-12
390-24-20 1 1/2 1 1/4 2.000 2.06 2.62 1  7/8-12
390-12-24 3/4 1 1/2 2.375 2.33 3.15 1  1/16-12
390-16-24 1 1 1/2 2.375 2.33 3.15 1 5/16-12
390-20-24 1 1/4 1 1/2 2.375 2.33 3.15 1  5/8-12
390-24-24 1 1/2 1 1/2 2.375 2.33 3.15 1  7/8-12
390-32-24 2 1 1/2 2.375 2.58 3.15 2  1/2-12
390-24-32 1 1/2 2 2.812 3.06 4.25 1  7/8-12
390-32-32 2 2 2.812 3.06 4.25 2  1/2-12



 Code 62

SKU Tube OD (in) Flange Size A B C Thread (in)
690-08-08 1/2 1/2 1.250 1.46 2.13 3/4-16
690-12-12 3/4 3/4 1.625 1.66 2.13 1 1/16-12
690-16-12 1 3/4 1.625 1.66 2.13 1 5/16-12
690-12-16 3/4 1 1.875 1.81 2.37 1 1/16-12
690-16-16 1 1 1.875 1.81 2.37 1 5/16-12
690-20-16 1 1/4 1 1.875 1.81 2.37 1 5/8-12
690-16-20 1 1 1/4 2.125 2.06 2.76 1 5/16-12
690-20-20 1 1/4 1 1/4 2.125 2.06 2.76 1 5/8-12
690-24-20 1 1/2 1 1/4 2.125 2.19 2.76 1 7/8-12
690-20-24 1 1/4 1 1/2 2.500 2.33 3.15 1 5/8-12
690-24-24 1 1/2 1 1/2 2.500 2.33 3.15 1 7/8-12
690-32-24 2 1 1/2 2.500 3.06 4.25 2 1/2-12
690-24-32 1 1/2 2 3.125 3.06 4.25 1 7/8-12
690-32-32 2 2 3.125 3.06 4.25 2 1/2-12
