Male JIC x Code 61 and Code 62

Flange Adapter

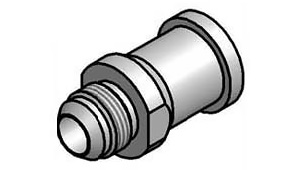

mj-fl-300



Split Flange Adapter for use with SAE J158 Split Flanges

These Adapters offer Many Cost-Saving Features:

  • One-Piece Carbon Steel Construction – Simplifies Installation & Eliminates Potential Leak Problems
  • Zinc Dichromate Finish
  • Compact Design – Simplifies Assembly

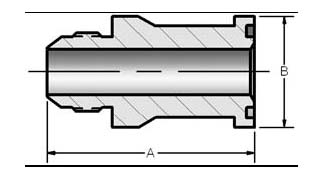

mj-fldiagram

Code 61

SKU Tube OD Flange Size A B Thread
300-08-08 1/2 1/2 2.60 1.188 3/4-16
300-08-12 1/2 3/4 2.75 1.500 3/4-16
300-12-12 3/4 3/4 2.75 1.500 1 1/16-12
300-16-12 1 3/4 2.75 1.500 1 5/16-12
300-12-16 3/4 1 2.80 1.750 1 1/16-12
300-16-16 1 1/4 1 2.80 1.750 1 5/16-12
300-20-16 1 1/4 1 2.80 1.750 1 5/8-12
300-16-20 1 1 1/4 2.80 2.000 1 15/16-12
300-20-20 1 1/4 1 1/4 2.80 2.000 1 5/8-12
300-24-20 1 1/2 1 1/4 3.40 2.000 1 7/8-12
300-20-24 1 1/4 1 1/2 3.50 2.375 1 5/8-12
300-24-24 1 1/2 1 1/2 3.50 2.375 1 7/8-12
300-32-24 2 1 1/2 4.20 2.375 2 1/2-12
300-24-32 1 1/2 2 3.73 2.812 1 7/8-12
300-32-32 2 2 3.98 2.812 2 1/2-12



Code 61

SKU Tube OD Flange Size A B Thread
600-08-08 1/2 1/2 2.61 1.250 3/4-16
600-12-12 3/4 3/4 2.75 1.625 1 1/16-12
600-16-12 1 3/4 2.75 1.625 1 5/16-12
600-12-16 3/4 1 2.80 1.875 1 1/16-12
600-16-16 1 1 2.80 1.875 1 5/16-12
600-20-16 1 1/4 1 2.80 1.875 1 5/8-12
600-16-20 1 1 1/4 3.05 2.125 1 5/16-12
600-20-20 1 1/4 1 1/4 3.05 2.125 1 5/8-12
600-24-20 1 1/2 1 1/4 3.30 2.125 1 7/8-12
600-20-24 1 1/4 1 1/2 3.50 2.500 1 5/8-12
600-24-24 1 1/2 1 1/2 3.50 2.500 1 7/8-12
600-32-24 2 1 1/2 4.94 2.500 2 1/2-12
600-24-32 1 1/2 2 3.98 3.125 1 7/8-12
600-32-32 2 2 4.23 3.125 2 1/2-12
