Male JIC x CAT Flange Adapter

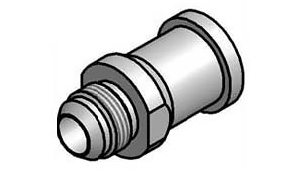

1_mj-fl-300

Split Flange Adapter for use with SAE J158 Split Flanges

These Adapters offer Many Cost-Saving Features:

  • One-Piece Carbon Steel Construction – Simplifies Installation & Eliminates Potential Leak Problems
  • Zinc Dichromate Finish
  • Compact Design – Simplifies Assembly

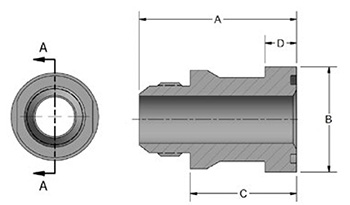

350-300-CAT-Diagram

Code 61

SKU Tube OD (in) Flange Size A B C D Thread (in)
300-12-12CAT 3/4 3/4 2.750 1.625 1.890 0.560 1 1/16-12
300-16-16CAT 1 1 2.800 1.875 1.890 0.560 1 5/16-12
300-20-20CAT 1 1/4 1 1/4 3.050 2.215 2.090 0.560 1 5/8-12
300-24-24CAT 1 1/2 1 1/2 3.500 2.500 2.420 0.560 1 7/8-12
