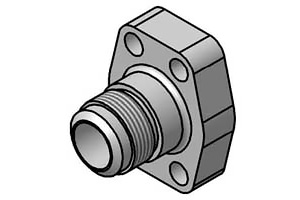

Male JIC by Code 61 & Code 62 Flange Fitting
Split Flange Adapter for use with SAE J158 Split Flanges
These Adapters offer Many Cost-Saving Features:
- One-Piece Carbon Steel Construction – Simplifies Installation & Eliminates Potential Leak Problems
- Zinc Dichromate Finish
- Compact Design – Simplifies Assembly
Code 61

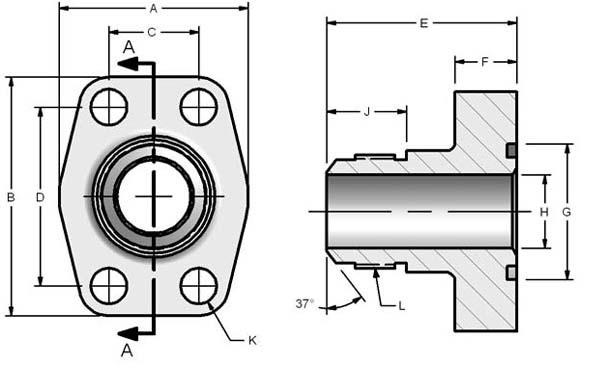

| SKU | A | B | C | D | E | F | G | H | J | K | L UN-UNF-2A |
| W300-08-08 | 1.81 | 2.13 | .0688 | 1.500 | 1.75 | 0.630 | 1.000 | 0.394 | 0.657 | 0.344 | 3/4-16 |
| W300-12-12 | 1.97 | 2.56 | 0.875 | 1.875 | 2.12 | 0.710 | 1.250 | 0.611 | 0.864 | 0.413 | 1 1/16-12 |
| W300-16-16 | 2.17 | 2.75 | 1.031 | 2.062 | 2.18 | 0.710 | 1.560 | 0.844 | 0.911 | 0.413 | 1 5/16-12 |
| W300-20-20 | 2.68 | 3.12 | 1.188 | 2.312 | 2.44 | 0.830 | 1.750 | 1.078 | 0.958 | 0.469 | 1 5/8-12 |
| W300-24-24 | 3.07 | 3.66 | 1.406 | 2.750 | 2.81 | 0.980 | 2.115 | 1.318 | 1.083 | 0.531 | 1 7/8-12 |
Code 62
| SKU | A | B | C | D | E | F | G | H | J | K | L UN-UNF-2A |
| W600-08-08 | 1.81 | 2.21 | 0.719 | 1.594 | 1.75 | 0.630 | 1.000 | 0.394 | 0.657 | 0.344 | 3/4-16 |
| W600-12-12 | 2.17 | 2.80 | 0.937 | 2.000 | 2.31 | 0.830 | 1.250 | 0.611 | 0.864 | 0.413 | 1 1/16-12 |
| W600-16-16 | 2.56 | 3.19 | 1.093 | 2.250 | 2.62 | 0.980 | 1.560 | 0.844 | 0.911 | 0.492 | 1 5/16-12 |
| W600-20-20 | 3.07 | 3.75 | 1.250 | 2.625 | 2.81 | 1.060 | 1.750 | 1.078 | 0.958 | 0.531 | 1 5/8-12 |
| W600-24-24 | 3.70 | 4.41 | 1.437 | 3.125 | 3.25 | 1.180 | 2.115 | 1.318 | 1.083 | 0.656 | 1 7/8-12 |
