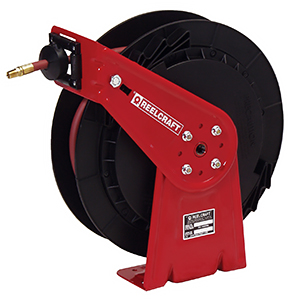

Reelcraft RT Series Top Wind Medium Duty Spring Retractable Hose Reel

OLYMPUS DIGITAL CAMERA


Features:Made In USA

  • 3 Pressure Choices available:
    • Low Pressure (300 psi) Hose Reel for use with Air and Water
      • Low Pressure Reels Furnished Standard with PVC Hose
    • Medium Pressure (1000 psi) Hose Reel for use with Oil
      • Medium Pressure Reels Furnished with S.A.E. 100R1-AT (3/8″) or S.A.E. 100r17 (1/2″) One Wire Braid Hose or equivalent
    • High Pressure (4000 psi) for use with Grease
      • High Pressure Reels come Standard with S.A.E. 100 R2T 2-Wire Braid Hose
  • Hose available in 1/4″,  3/8″, and 1/2″ ID
  • RT Series is an Economical Choice for Medium Duty, Light Weight, Spring Driven Hose Reel
  • For Industrial and Commercial Use
  • Industrial-Grade Drive Spring is Protected with a Polypropylene Spool for Longer Service Life
  • Maximum Temperature:  150°F   (65°C)

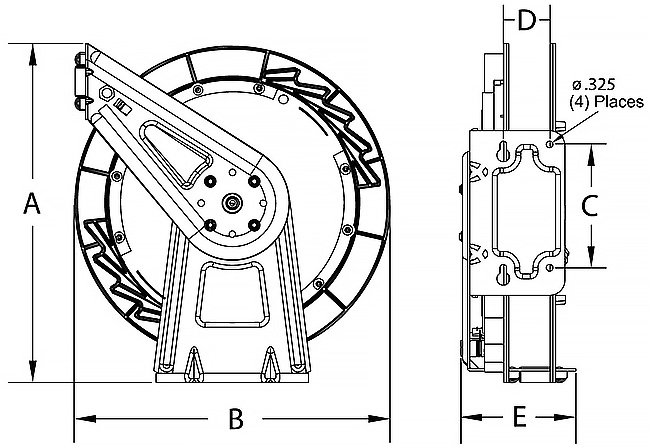

RT Diag-650



Low Pressure Air/Water Reels

SKU Hose ID (in) Hose Length (ft) Max (psi) NPT Hose Outlet (in) NPT Reel Inlet (in) A (in) B (in) C (in) D (in) E (in) Weight (lbs)
RT402-OLP-TW ♦ 300 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 19
RT403-OLP-TW ♦ 300 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 19
RT405-OLP-TW ♦ 300 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 21
RT406-OLP-TW ♦ 300 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 21
RT425-OLP-TW 1/4 25 300 1/4 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 19
RT435-OLP-TW 1/4 35 300 1/4 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 21
RT450-OLP-TW 1/4 50 300 1/4 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 24
RT465-OLP-TW 1/4 65 300 1/4 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 24
RT602-OLP-TW ♦ 300 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 19
RT603-OLP-TW ♦ 300 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 19
RT605-OLP-TW ♦ 300 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 22
RT625-OLP-TW ♦ 3/8 25 300 1/4 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 20
RT635-OLP-TW 3/8 35 300 1/4 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 21
RT650-OLP-TW 3/8 50 300 1/4 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 27
RT802-OLP-TW ♦ 300 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 23
RT803-OLP-TW ♦ 300 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 23
RT805-OLP-TW ♦ 300 1/2 17 7/8 16 1/2 6 2 1/4 7 3/4 25
RT825-OLP-TW 1/2 25 300 1/2 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 26
RT835-OLP-TW 1/2 35 300 1/2 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 27
RT850-OLP-TW 1/2 50 300 1/2 1/2 17 7/8 16 1/2 6 2 1/4 7 3/4 37

 ♦ Hose & Bumper NOT Included

Medium Pressure Reels for Oil

SKU Hose ID (in) Hose Length (ft) Max (psi) NPT Hose Outlet (in) NPT Reel Inlet (in) A (in) B (in) C (in) D (in) E (in) Ship Weight (lbs)
RT602-OMP-TW 1000 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 22
RT603-OMP-TW ♦ 1000 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 22
RT605-OMP-TW ♦ 1000 1/2 17 7/8 16 1/2 6 2 1/4 7 3/4 25
RT625-OMP-TW 3/8 25 1000 3/8 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 27
RT635-OMP-TW 3/8 35 1000 3/8 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 30
RT650-OMP-TW 3/8 50 1000 3/8 1/2 17 7/8 16 1/2 6 2 1/4 5 3/4 35
RT802-OMP-TW ♦ 1000 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 23
RT803-OMP-TW ♦ 1000 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 23
RT825-OMP-TW 1/2 25 1000 1/2 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 31
RT835-OMP-TW 1/2 35 1000 1/2 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 32

♦ Hose & Bumper NOT Included

High Pressure Reels for Grease

SKU Hose ID (in) Hose Length (ft) Max (psi) NPT Hose Outlet (in) NPT Reel Inlet (in) A (in) B (in) C (in) D (in) E (in) Ship Weight (lbs)
RT402-OHP-TW ♦ 5000 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 22
RT403-OHP-TW ♦ 5000 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 22
RT425-OHP-TW 1/4 25 5000 1/4 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 28
RT435-OHP-TW 1/4 35 5000 1/4 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 30
RT602-OHP-TW ♦ 4800 3/8 17 7/8 16 1/2 6 2 1/4 5 3/4 22
RT603-OHP-TW ♦ 4800 1/2 17 7/8 16 1/2 6 2 1/4 5 3/4 22
RT605-OHP-TW ♦ 4800 1/2 17 7/8 16 1/2 6 2 1/4 6 1/4 25
RT625-OHP-TW 3/8 25 4800 3/8 3/8 17 7/8 16 1/2 6 2 1/4 6 1/4 30
RT635-OHP-TW 3/8 35 4800 3/8 1/2 17 7/8 16 1/2 6 2 1/4 7 3/4 34
RT650-OHP-TW 3/8 50 4800 3/8 1/2 17 7/8 16 1/2 6 2 1/4 7 3/4 46

♦  Hose & Bumper NOT Included
