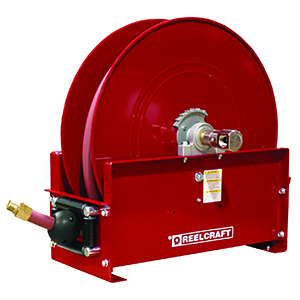

Reelcraft Series 9000 Vehicle-Mount Spring Retractable Hose Reel with Side Wind
Features:
- 3 Pressure Choices Available:
- Low Pressure:
- 250 – 600 psi for use with Air and Water
- Furnished Standard with PVC Hose
- Maximum Temperature: With Hose 150°F (65°C) Without Hose 210°F (99°C)
- Medium Pressure:
- 1250 – 3000 psi for use with Oil
- Furnished Standard with SAE 100R17 (1/2″ and 1″) or SAE 100R1-AT (3/4″) One Wire Braid Hose
- Maximum Temperature 210°F (99°C)
- High Pressure:
- 4800 – 5000 psi for use with Grease
- Furnished Standard with SAE 100 R2T 2-Wire Braid Hose
- Maximum Temperature 210°F (99°C)
- Low Pressure:
- Ultimate Duty Spring Retractable Reel
- Available in 3/8″, 1/2″, 3/4″, 1, 1 1/4″, 1 1/2″ Hose ID
- Series 9000 Mobile Base Reels Offer the Greatest Amount of Stability for High Volume Air, Water, Diesel Fuel and Gasoline
- Ideal for Portable Service Trucks, Permanent Service or Plant Work Area
- Durable Baked-On Powder Coat Finish Produces a Rugged Corrosion Resistant Product Suitable for a Wide Variety of Heavy Duty Applications
- Basic Reels Without Hose Will Handle Air, Water or Oil
Low Pressure for Air and Water
| SKU | Hose ID (in) | Hose Length (ft) | Max psi | NPT Hose Outlet (in) | NPT Reel Inlet (in) | Ship Weight (lbs) |
| D9200-OLP-SW ♦ | – | – | 500 | – | 1/2 | 115 |
| D9275-OLP-SW | 1/2 | 75 | 300 | 1/2 | 1/2 | 122 |
| D9299-OLP-SW | 1/2 | 100 | 300 | 1/2 | 1/2 | 127 |
| D9300-OLP-SW ♦ | – | – | 500 | – | 1/2 | 115 |
| D9350-OLP-SW | 3/4 | 50 | 250 | 3/4 | 1/2 | 140 |
| D9375-OLP-SW | 3/4 | 75 | 250 | 3/4 | 1/2 | 152 |
| D9400-OLP-SW ♦ | – | – | 500 | – | 1/2 | 115 |
| D9450-OLP-SW | 1 | 100 | 250 | 3/4 | 1/2 | 157 |
♦ Hose & Bumper NOT Included
Medium Pressure Hose Reel for Oil
| SKU | Hose ID (in) | Hose Length (ft) | Max psi | NPT Hose Outlet (in) | NPT Reel Inlet (in) | Ship Weight (lbs) |
| D9200-OMP-SW ♦ | – | – | 3000 | – | 1/2 | 117 |
| D9275-OMP-SW | 1/2 | 75 | 3000 | 1/2 | 1/2 | 131 |
| D9300-OMP-SW ♦ | – | – | 3000 | – | 3/4 | 117 |
| D9350-OMP-SW ♦ | 3/4 | 50 | 1250 | 3/4 | 3 | 142 |
| E9450-OMP- SW ♦ | – | – | 3000 | – | 1 | 120 |
| E9400-OMP-SW ♦ | 1 | 50 | 3000 | 1 | 1 | 160 |
♦ Hose & Bumper NOT Included
High Pressure for Grease
| SKU | Hose ID (in) | Hose Length (ft) | Max psi | NPT Hose Outlet (in) | NPT Reel Inlet (in) | Ship Weight (lbs) |
| D9100-OHP-SW ♦ | – | – | 500 | – | 1/2 | 118 |
| D9175-OHP-SW | 3/8 | 75 | 4800 | 3/8 | 1/2 | 153 |
♦ Hose & Bumper NOT Included
