Reelcraft Series DP5000/DP7000 Compact, Dual Pedestal Reel with Side Wind
Low Pressure for use with Air & Water

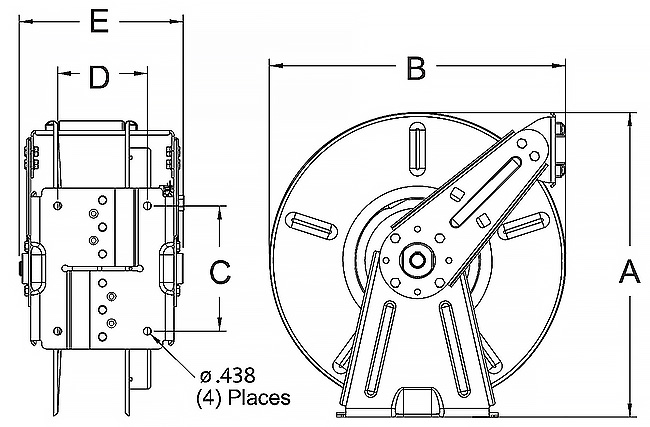

| SKU | A (in) | B (in) | C (in) | D (in) | E (in) |
| DP5400-OLP-SW ♦ | 16 3/4 | 14 3/8 | 7 | 4 | 8 |
| DP-5435-OLP-SW | 16 3/4 | 14 3/8 | 7 | 4 | 8 |
| DP5450-OLP-SW | 16 3/4 | 14 3/8 | 7 | 4 | 8 |
| DP7400-OLP-SW ♦ | 17 | 16 1/2 | 7 | 4 | 8 |
| DP7450-OLP-SW | 17 | 16 1/2 | 7 | 4 | 8 |
| DP5600-OLP-SW ♦ | 16 3/4 | 14 3/8 | 7 | 4 | 8 |
| DP5605-OLP-SW ♦ | 16 3/8 | 14 3/8 | 7 | 5 | 9 |
| DP5635-OLP-SW | 16 3/4 | 14 3/8 | 7 | 4 | 8 |
| DP5650-OLP-SW | 16 3/8 | 14 3/8 | 7 | 5 | 9 |
| DP7600-OLP-SW ♦ | 17 | 17 | 7 | 4 | 8 |
| DP7650-OLP-SW | 17 | 17 | 7 | 4 | 8 |
| DP5800-OLP-SW ♦ | 16 3/8 | 14 3/8 | 7 | 5 | 9 |
| DP5835-OLP-SW | 16 3/8 | 14 3/8 | 7 | 5 | 9 |
| DP7800-OLP-SW ♦ | 17 | 16 1/2 | 7 | 5 | 9 |
| DP7850-OLP-SW | 17 | 16 1/2 | 7 | 5 | 9 |
| DP7850-OLP121-SW | 17 | 16 1/2 | 7 | 5 | 9 |
♦ Hose & Bumper NOT Included
Medium Pressure for use with Oil
| SKU | A (in) | B (in) | C (in) | D (in) | E (in) |
| DP7600-OMP-SW ♦ | 17 | 16 1/2 | 7 | 4 | 8 |
| DP7650-OMP-SW | 17 | 16 1/2 | 7 | 4 | 8 |
| DP5800-OMP-SW ♦ | 16 3/8 | 14 3/8 | 7 | 5 | 9 |
| DP5835-OMP-SW | 16 3/8 | 14 3/8 | 7 | 5 | 9 |
| DP7800-OMP-SW ♦ | 17 | 16 1/2 | 7 | 5 | 9 |
| DP7850-OMP-SW | 17 | 16 1/2 | 7 | 5 | 9 |
♦ Hose & Bumper Not Included
High Pressure Hose Reels for use with Grease
| SKU | A (in) | B (in) | C (in) | D (in) | E (in) |
| DP7400-OHP-SW ♦ | 17 | 16 1/2 | 7 | 4 | 8 |
| DP7450-OHP-SW | 17 | 16 1/2 | 7 | 4 | 8 |
| DP5600-OHP-SW ♦ | 16 3/8 | 14 3/8 | 7 | 5 | 9 |
| DP5635-OHP-SW | 16 3/8 | 14 3/8 | 7 | 5 | 9 |
| DP7600-OHP-SW ♦ | 17 | 16 1/2 | 7 | 4 | 8 |
| DP7650-OHP-SW | 17 | 16 1/2 | 7 | 4 | 8 |
♦ Hose & Bumper NOT Included
